Same model may have multiple batches, images only for reference.

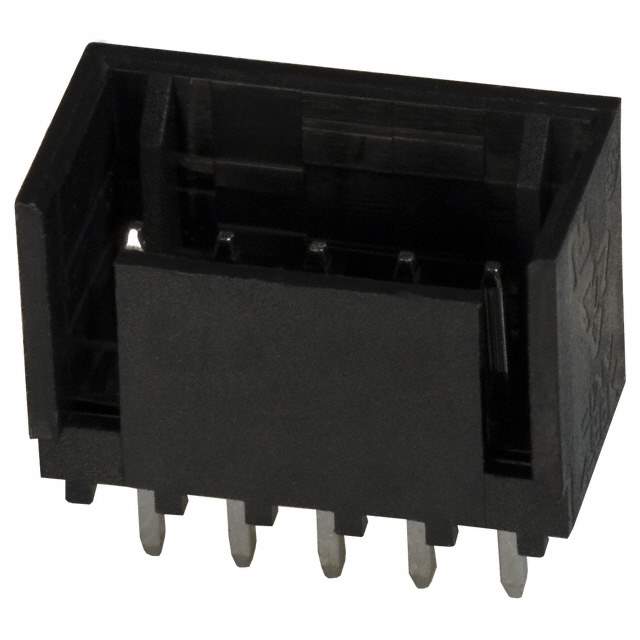

2-644486-5 Real Image
Same model may have multiple batches, images only for reference.

2-644486-5

Part No 2-644486-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 5POS .100 TIN
Datasheet
2-644486-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 5
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.200" (5.08mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.440" (11.18mm)
Insulation Height 0.410" (10.41mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyester
Features Board Guide
Temperature Range - Operating -55°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating Varies by Wire Gauge
Voltage Rating 250VAC
Applications General Purpose
Win Source Part Number 054575-2-644486-5
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2-644486-5 CAD Model

Description

Product Description: 2-644486-5

The 2-644486-5 connector represents the pinnacle of connection technology, offering superior construction for highly reliable performance in critical systems.

  • Features and Benefits:
    • High precision connectivity
    • Exceptional durability
    • Wide compatibility
    • Secure and stable performance
  • Applications/Projects:
    • Medical equipment
    • Network systems
    • Robotics
    • Instrumentation
  • Additional Details: With its advanced design, the 2-644486-5 is engineered to provide seamless connections that meet stringent quality standards, ensuring optimal system function.
