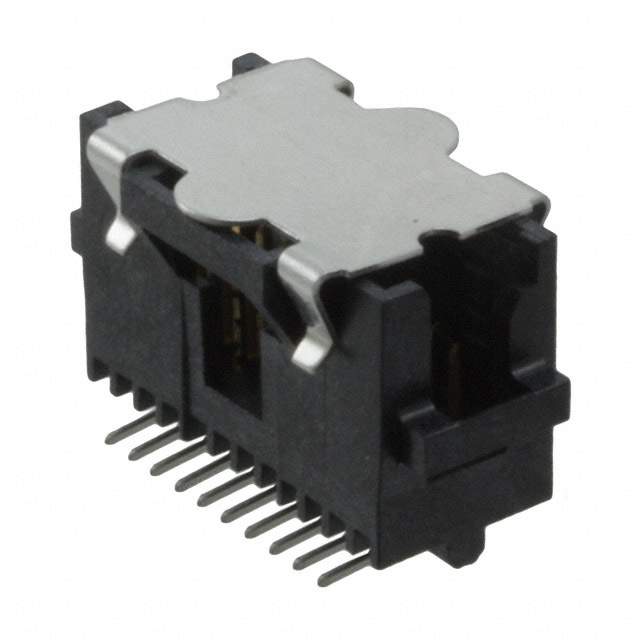

Same model may have multiple batches, images only for reference.

5-147377-2

Name: 5-147377-2
Brand: TE Connectivity
SKU: 751414
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	5-147377-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 1.27MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Cut Tape (CT)
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Style	SMD
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.125" (3.18mm)
Insulation Height	0.435" (11.05mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyphthalamide (PPA)
Features	Pick and Place
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	30VAC
Contact Finish Thickness - Post	150.0μin (3.81μm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	751414-5-147377-2
Popularity	Low
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 5-147377-2 CAD Model

Description

The TE Connectivity AMP Connectors 751414-5-147377-2 is a male pin header connector.

Pitch-Mating: 0.050" (1.27mm)
Row Spacing-Mating: 0.100" (2.54mm)
Shrouded: 4 walls
Mounting Style: SMD
Features: Pick and Place
Voltage Rating: 30VAC
Supply and Demand Status: Limited
