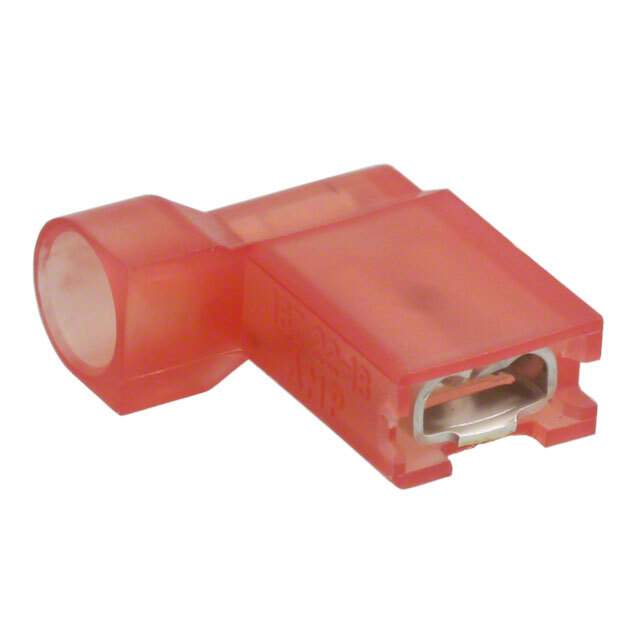

2-520335-2 Real Image
Same model may have multiple batches, images only for reference.

2-520335-2

Part No 2-520335-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 18-22AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line), Right Angle
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.165" (4.19mm)
Base Product Number 520335
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 2-520335-2-ND,Q549902,A27833,-2-520335-2-SI,25203352,2266-2-520335-2
Standard Package 1,000
Win Source Part Number 1333504-2-520335-2
Ultra Librarian 3D Model Ultra Librarian 2-520335-2 CAD Model

Description

TE Connectivity AMP Connectors 1333504-2-520335-2 female quick disconnect connector is a fully insulated crimp terminal with tin contact finish.

  • Wire Gauge: 18-22 AWG
  • Terminal Type: Angled-90 degrees, Flag
  • Contact Termination: Crimp
  • Contact Finish: Tin
  • Tab Width: 0.187 inches (4.75mm)
  • Tab Thickness: 0.020 inches (0.51mm)
  • Mounting: Free-Hanging (In-Line), Right-Angle
  • Insulation Diameter: 0.165 inches (4.19mm)
  • Insulated: Fully Insulated
  • Package: Bulk
  • Quantity: 1,000 Connectors
  • Suitable for: Use in various electronic applications.
