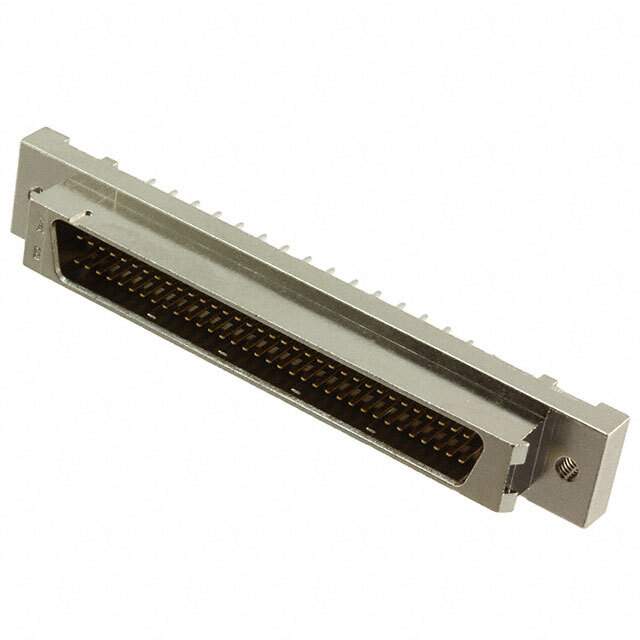

2-5174339-5 Real Image
Same model may have multiple batches, images only for reference.

2-5174339-5

Part No 2-5174339-5
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-TYPE CAP 68POS VERT SLDR / 68 Position D-Type Cap, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Style D-Type
Connector Type Cap, Male Pins
Number of Positions 68
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Flange Feature Housing/Shell (M2.5)
Termination Solder
Shell Material, Finish Zinc, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1A
Features Shielded
Voltage Rating 100V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 85°C
Base Product Number 5174339
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2-5174339-5-ND,-2-5174339-5-SI,A121355,2266-2-5174339-5
Standard Package 70
Win Source Part Number 1333208-2-5174339-5
Ultra Librarian 3D Model Ultra Librarian 2-5174339-5 CAD Model

Description

The TE Connectivity AMP Connectors 1333208-2-5174339-5 is a D-sub connector assembly with a black-colored housing and a shielded design.

  • Color: Black
  • Shielded: Yes
  • Number of Positions: 68
  • Mounting: Through-Hole
  • Connector Type: Cap with Male Pins
  • Termination: Soldering
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 100V
  • Current Rating: 1A
  • RoHS Compliant: Yes
  • Temperature Range: -55°C to 85°C
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Housing Feature: Flange
  • Packaging: Bulk
  • Standard Package: 70 Units
