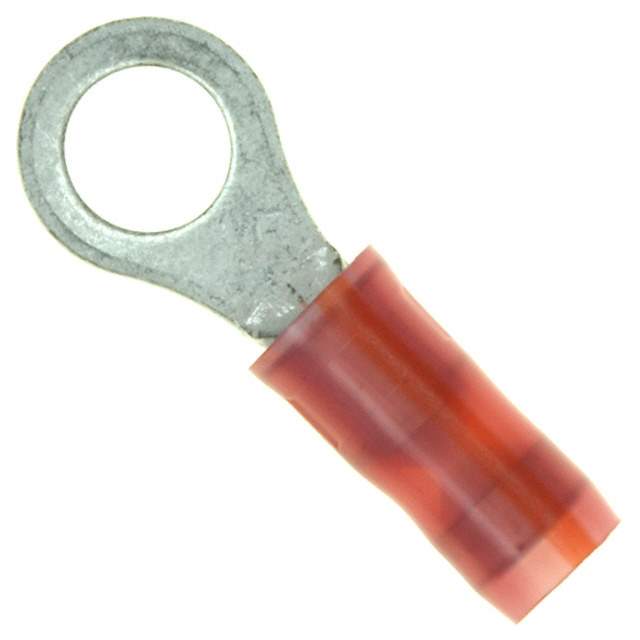

2-36153-4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series PIDG
Package Bulk
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.312" (7.92mm)
Length - Overall 0.909" (23.10mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 20 AWG
Insulation Insulated
Features Insulation Restriction
Color Red, Red Stripe
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.046" ~ 0.110" (1.17mm ~ 2.79mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 36153
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 2266-2-36153-4,A27342,2-36153-4-ND
Standard Package 1,000
Win Source Part Number 1035906-2-36153-4
Ultra Librarian 3D Model Ultra Librarian 2-36153-4 CAD Model

Description

The 1035906-2-36153-4 is a circular terminal type connector designed for use in various electronic devices.

  • Manufacturer: TE Connectivity AMP Connectors
  • Insulation Material: Polyamide (PA) and nylon
  • Stud Size: 10 Stud
  • Wire Gauge: 20 AWG
  • Insulation Diameter: 0.046" ~ 0.110" (1.17mm ~ 2.79mm)
  • Thickness: 0.031" (0.79mm)
  • Width: 0.312" (7.92mm)
  • Length: 0.909" (23.10mm)
  • Color: Red
  • Stripe Feature: Red stripe
  • Package: Bulk
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.90.4000
