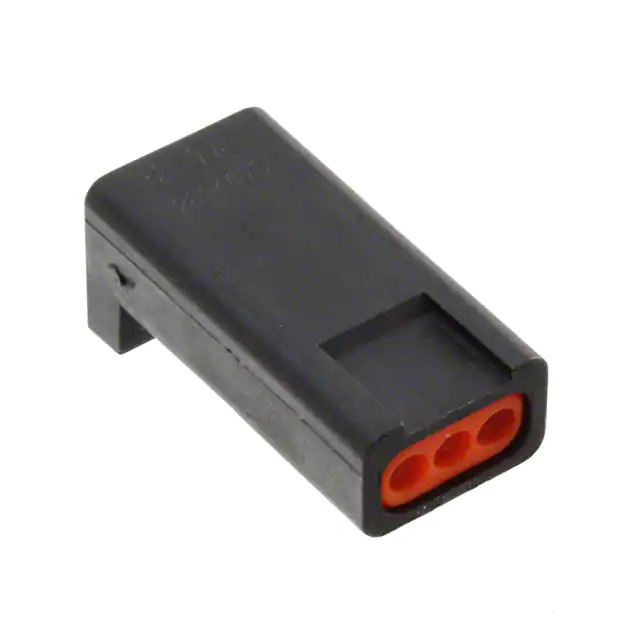

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Solid State Lighting Connectors - Solid State Lighting Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series SlimSeal
Package Tray
Product Status Active
Style Cable/Wire to Cable/Wire
Connector Type Receptacle Housing for Pin Contact
Number of Positions 3
Mounting Type Free Hanging (In-Line)
Termination Crimp
Pitch 0.098" (2.50mm)
Fastening Type Latch Holder
Features -
Housing Color Black
Wire Gauge -
Contact Material -
Contact Finish -
Housing Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 400V
Current Rating (Amps) 3.5A, 5A
Ingress Protection IP67 - Dust Tight, Waterproof
Mating Cycles 30
Base Product Number 2834075
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1364311-2-2834075-3
Ultra Librarian 3D Model Ultra Librarian 2-2834075-3 CAD Model

Description

The TE Connectivity AMP Connectors Solid State Lighting Connector Assembly is a high-quality component designed for solid state lighting applications.

  • Series: SlimSeal
  • Package: Tray
  • Style: Cable/Wire to Cable/Wire
  • Positions: 3
  • Operating Temperature: -40°C to 105°C
  • Product Status: Active
  • MSL: Unlimited
  • Current Rating: 3.5A, 5A
  • Voltage Rating: 400V
  • Ingress Protection: IP67
