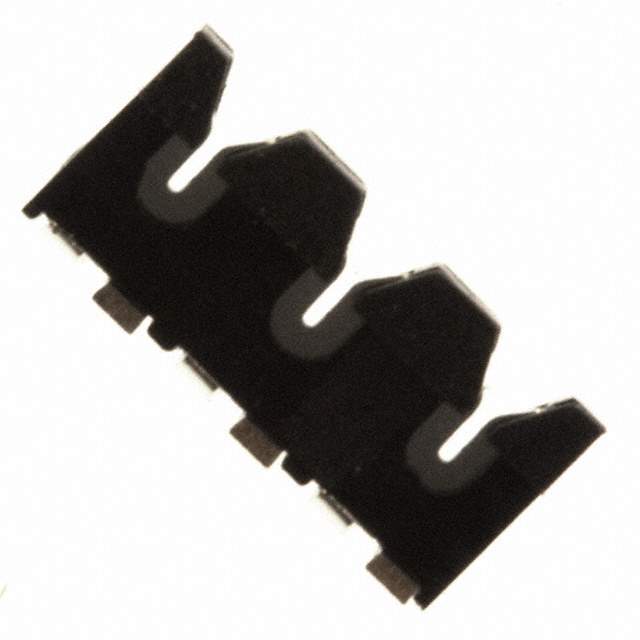

Same model may have multiple batches, images only for reference.

009175003001006

Name: 009175003001006
Brand: AVX Corp/Kyocera Corp
SKU: 853112
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	009175003001006
Manufacturer	AVX Corp/Kyocera Corp
Catalog	Solid State Lighting Connectors
Description	CONN SSL IDC CONT 26-28AWG SLDR
Datasheet	009175003001006 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Solid State Lighting Connectors - Solid State Lighting Connector Contacts
Mfr	AVX Corp/Kyocera Corp
Series	9175
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Active
Style	Board to Cable/Wire
Connector Type	Contact, IDC
Number of Positions	3
Mounting Type	Surface Mount
Termination	Solder
Pitch	0.098" (2.50mm)
Wire Gauge	26-28 AWG
Features	Cap (Cover)
Contact Finish	Tin
Contact Material	Phosphor Bronze
Housing Color	Black
Housing Material	Polyamide (PA46), Nylon 4/6
Temperature Range - Operating	-40°C ~ 125°C
Voltage Rating	125 V
Current Rating (Amps)	1A per Contact
Mating Cycles	3
Standard Package	2,000 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853112-009175003001006
Ultra Librarian 3D Model	Ultra Librarian 009175003001006 CAD Model

Alternative Products

Description

The AVX Corp/Kyocera Corp 853112-009175003001006 is a solid state lighting connector contact from the 9175 series.

Positions: 3
Pitch: 0.098" (2.50mm)
Connector Type: Contact, IDC
Features: Cap (Cover)
Termination: Solder
Connection Style: Board to Cable/Wire
Contact Finish: Tin
Housing Material: Polyamide (PA46), Nylon 4/6
Housing Color: Black
Standard Package: 2,000 pcs
Wire Gauge Range: 26-28 AWG
Voltage Rating: 125 V
Operating Temperature: -40°C ~ 125°C
ECCN: EAR99
MSL Level: 3 (168 Hours)
REACH: Unaffected
