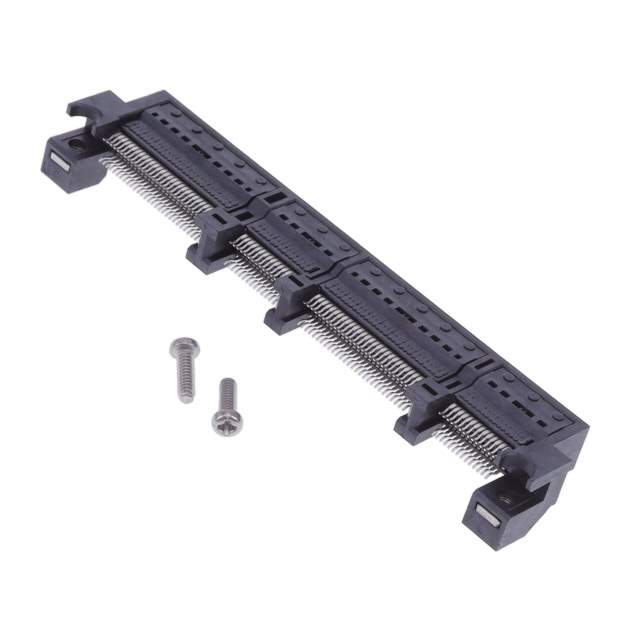

2-2340321-1 Real Image
Same model may have multiple batches, images only for reference.

2-2340321-1

Part No 2-2340321-1
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FML 168POS 0.024 / 168 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 168
Card Thickness 0.093" (2.36mm)
Number of Rows 2
Pitch 0.024" (0.60mm)
Read Out Dual
Mounting Board Edge, Straddle Mount
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Flange Feature Straddle Mount Opening, Unthreaded, 0.094" (2.40mm)
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number 2340321
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A144493
Standard Package 648
Win Source Part Number 1334017-2-2340321-1
Ultra Librarian 3D Model Ultra Librarian 2-2340321-1 CAD Model

Description

The TE Connectivity AMP Connectors 1334017-2-2340321-1 is a female card edge connector with a pitch of 0.024" (0.60mm) and 168 positions.

  • Pitch: 0.024" (0.60mm)
  • Positions: 168
  • Color: Black
  • Feature: Straddle Mount Opening Flange
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Standard Package: 648
  • Mounting: Board Edge or Straddle Mount
  • RoHS Compliant: Yes
