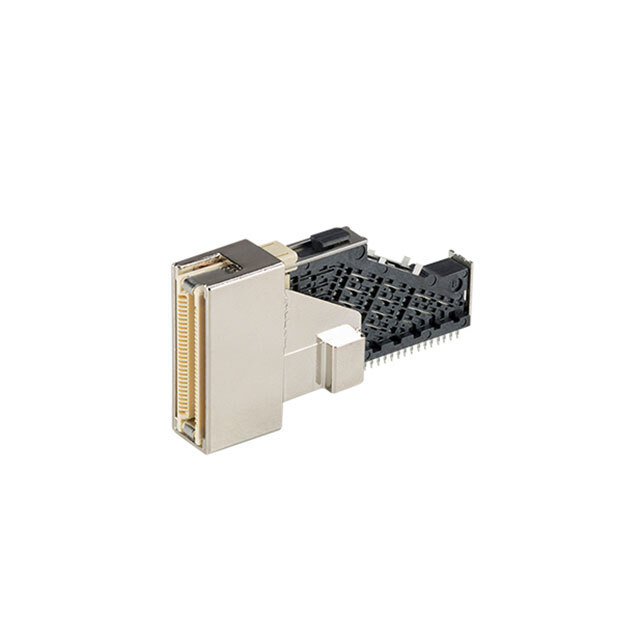

Same model may have multiple batches, images only for reference.
ME2005602311011 Amphenol – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ME2005602311011

Part No ME2005602311011
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description 56 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Natural
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Series Mini Cool Edge 0.60mm
Packaging Tube
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 28
Number of Positions 56
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.024" (0.60mm)
Read Out Dual
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Natural
Temperature Range - Operating -55°C ~ 105°C
Material - Insulation Thermoplastic
Base Product Number ME200
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1481672-ME2005602311011
Ultra Librarian 3D Model Ultra Librarian ME2005602311011 CAD Model
