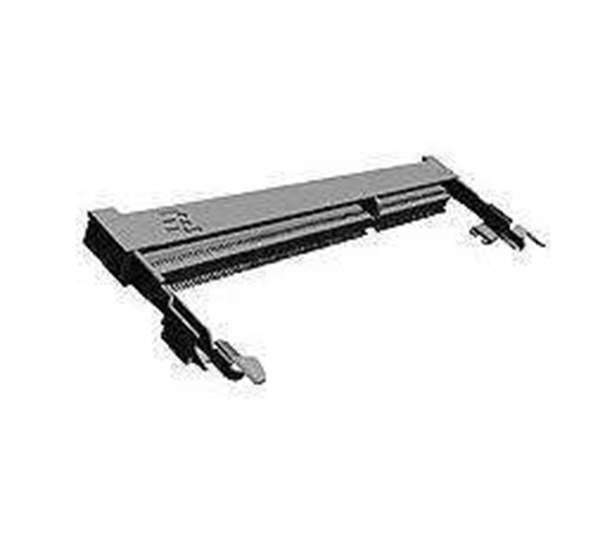

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1308554-2-2013298-3
Manufacturer TE Connectivity
Category Connectors, Interconnects> Memory Connectors> Inline Module Sockets
Packaging  Tape & Reel (TR)
Part Status Obsolete
Connector Style SODIMM
Number of Positions 204
Memory Type DDR3 SDRAM
Mounting Type Surface Mount
Insertion Angle 25° Angle
Mounting Feature Reverse
Ultra Librarian 3D Model Ultra Librarian 2-2013298-3 CAD Model

Description

204 Position SODIMM DDR3 SDRAM Socket Surface Mount
