Same model may have multiple batches, images only for reference.

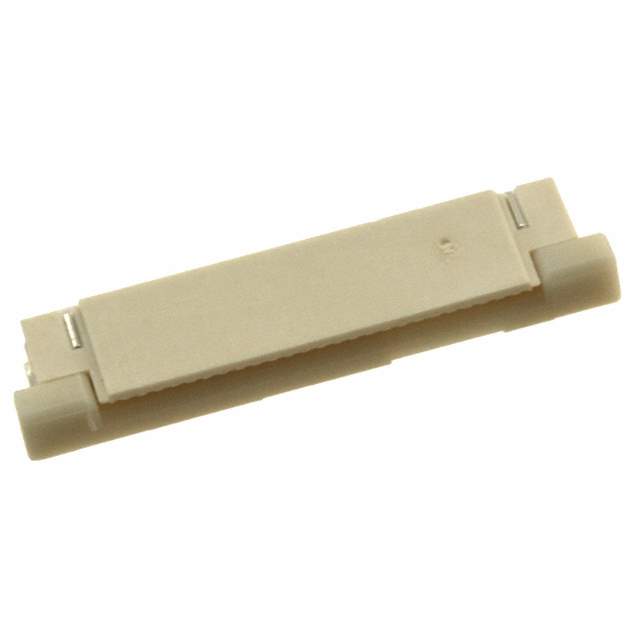

2-1734839-6 Real Image
Same model may have multiple batches, images only for reference.

2-1734839-6

Part No 2-1734839-6
Manufacturer TE Connectivity
Catalog Flat Flex Cables (FFC, FPC)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr TE Connectivity AMP Connectors
Package Tape & Reel
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 26
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.081" (2.05mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Thermoplastic
Actuator Material Thermoplastic
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 250V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness Flash
Housing Color Natural
Actuator Color Ivory
Base Product Number 1734839
Other Names 2-1734839-6,A101343TR,A101343CT,217348396,A101343DKR
Standard Package 16,000
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1294077-2-1734839-6
Ultra Librarian 3D Model Ultra Librarian 2-1734839-6 CAD Model

Description

The TE Connectivity AMP Connectors FFC, FPC (Flat Flexible) Connector is a top contact connector with a slide lock feature.

  • Feature: Slide Lock
  • Positions: 26
  • Pitch: 0.020” (0.50mm)
  • Termination: Soldered
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Height Above Board: 0.081” (2.05mm)
  • Flat Flex Type: FPC
  • FFC/FPC Thickness: 0.30mm
  • Voltage Rating: 250V
  • Current Rating: 0.5A
  • Housing Material: Thermoplastic
  • Flammability Rating: UL94 V-0
  • Housing Color: Natural
  • Operating Temperature: -20°C to 85°C
  • Mounting: Surface Mount, Right Angle
