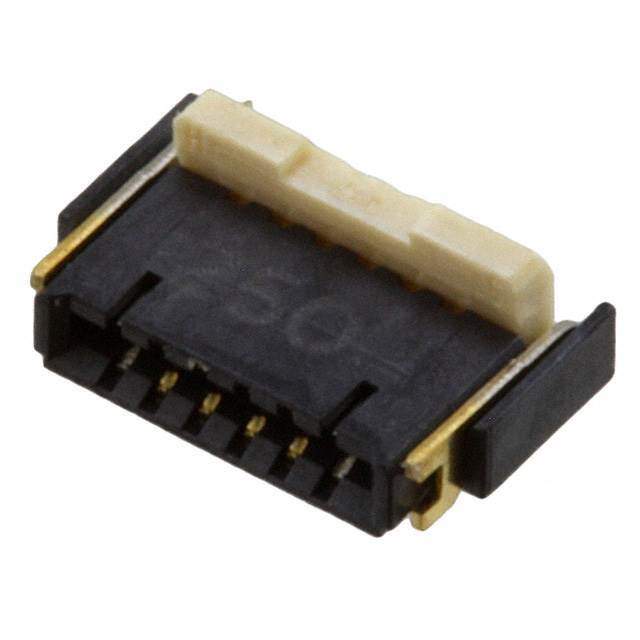

Same model may have multiple batches, images only for reference.

AYF530465T

Name: AYF530465T
Brand: Panasonic
SKU: 1177983
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AYF530465T
Manufacturer	Panasonic
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 4POS 0.50MM R/A / 4 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Panasonic Electric Works
Series	Y5BW
Package	Tape & Reel (TR)
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	4
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Notched
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A per Contact
Mating Cycles	20
Base Product Number	AYF530465
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	-AYF530465T-ND
Standard Package	5,000
Win Source Part Number	1177983-AYF530465T
Ultra Librarian 3D Model	Ultra Librarian AYF530465T CAD Model

Description

The Y5BW series FPC connector from Panasonic Electric Works is a 4-position, top and bottom contacts, right angle surface mount connector that is designed to be used with FFC and FPC cables.

Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Pitch: 0.020 inches (0.50mm)
Voltage Rating: 50V
Locking Feature: Flip Lock and Backlock
Cable End Type: Notched
Contact Material: Copper Alloy
Contact Finish: Gold
Height Above Board: 0.039 inches (1.00mm)
Mating Cycle: 20
Temperature Range: -55°C to 85°C
