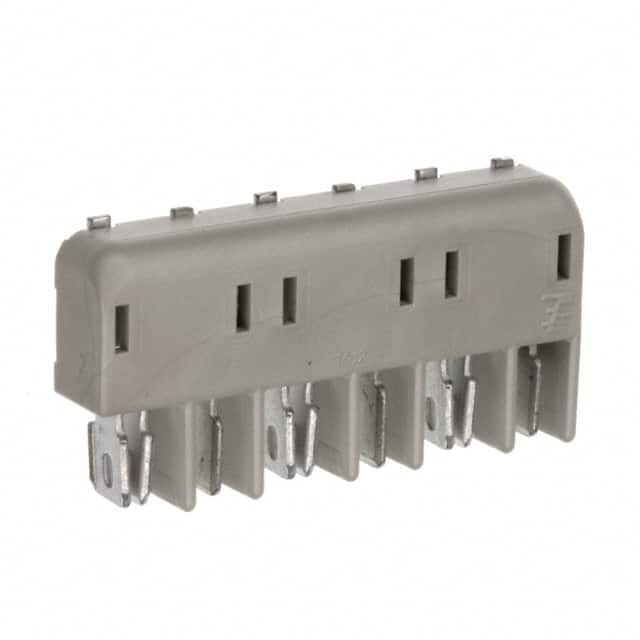

1954289-3
Same model may have multiple batches, images only for reference.

1954289-3

Part No 1954289-3
Manufacturer TE Connectivity
Catalog Solid State Lighting Connectors
Description CONN SSL RCPT & BLADE 6POS 4MM / SSL Connector 6 Position Blade and Receptacle, Hermaphroditic Board to Board 0.157" (4.00mm) Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Solid State Lighting Connectors - Solid State Lighting Connector Assemblies
Mfr TE Connectivity
Package Tape & Reel
Product Status Active
Style Board to Board
Connector Type Blade and Receptacle, Hermaphroditic
Number of Positions 6
Mounting Type Board Edge, Surface Mount, Right Angle
Termination Solder
Pitch 0.157" (4.00mm)
Housing Color Natural
Contact Material Copper Alloy
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 125V
Current Rating (Amps) 6A
Base Product Number 1954289
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854267-1954289-3
Ultra Librarian 3D Model Ultra Librarian 1954289-3 CAD Model

Description

The Solid State Lighting Connector Assemblies are high-quality electronic components designed for efficient and reliable lighting connections. These connector assemblies are suitable for solid state lighting applications and are part of TE Connectivity's product range.

  • Positions: 6
  • Pitch: 0.157"
  • Connector Type: Blade and Receptacle, Hermaphroditic
  • Termination: Solder
  • Contact Finish: Tin
  • Voltage Rating: 125V
  • Contact Material: Copper Alloy
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Standard Package: 1,000 pcs
  • Temperature Range: -40°C to 105°C
