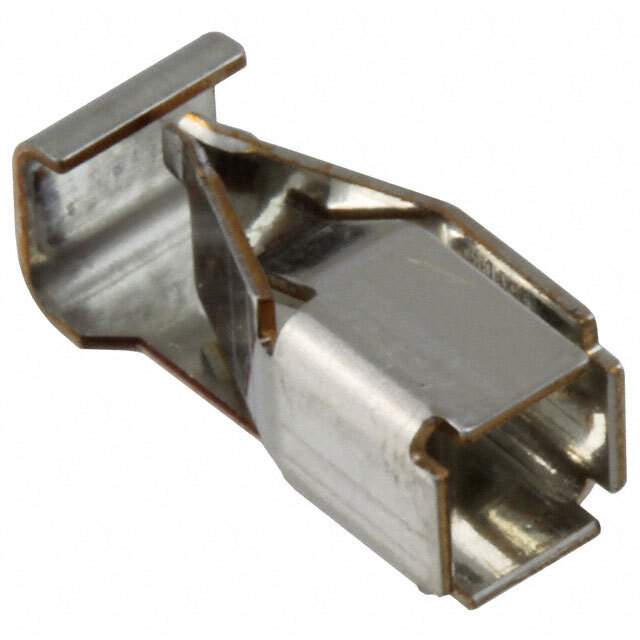

709296001003006 Real Image
Same model may have multiple batches, images only for reference.

709296001003006

Part No 709296001003006
Manufacturer AVX Corp/Kyocera Corp
Catalog Solid State Lighting Connectors
Description CONN SSL POKE-IN CONT 18-26AWG
Datasheet
709296001003006 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Solid State Lighting Connectors - Solid State Lighting Connector Contacts
Mfr AVX Corp/Kyocera Corp
Series Stript™ 70-9296
Package Tape & Reel
Product Status Active
Style Board to Cable/Wire
Connector Type Contact, Poke-In Wire
Number of Positions 1
Mounting Type Surface Mount, Right Angle
Termination Solder
Wire Gauge 18-26 AWG
Contact Finish Tin
Contact Material Phosphor Bronze
Temperature Range - Operating -40°C ~ 125°C
Voltage Rating 300 V
Mating Cycles 5
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 856135-709296001003006
Ultra Librarian 3D Model Ultra Librarian 709296001003006 CAD Model

Description

The 856135-709296001003006 is a solid state lighting connector contact designed for board to cable/wire connections.

  • Series: Stript™ 70-9296
  • Wire Gauges: 18-26 AWG
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • Voltage Rating: 300 V
  • Operating Temperature: -40°C to 125°C
  • Termination: Soldering
  • Mounting Type: Surface Mount, Right-Angle
  • Package: Tape & Reel
  • Pieces per Package: 2,500
  • Manufacturer: AVX Corp/Kyocera Corp
  • Product Status: Active
