Products specifications

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 9
Shell Size - Insert 13-9
Contact Type Crimp
Contact Size 16
Mounting Free Hanging (In-Line)
Fastening Type Threaded
Orientation Keyed
Shell Material Thermoplastic
Housing Color Black
Material Flammability Rating UL94 V-0
Features Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 182645
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number -182645-1-LSI,-182645-1-SI,182645-1-ND,-182645-1-CSI,1826451,A99536
Standard Package 100
Win Source Part Number 1334531-182645-1
Ultra Librarian 3D Model Ultra Librarian 182645-1 CAD Model

Description

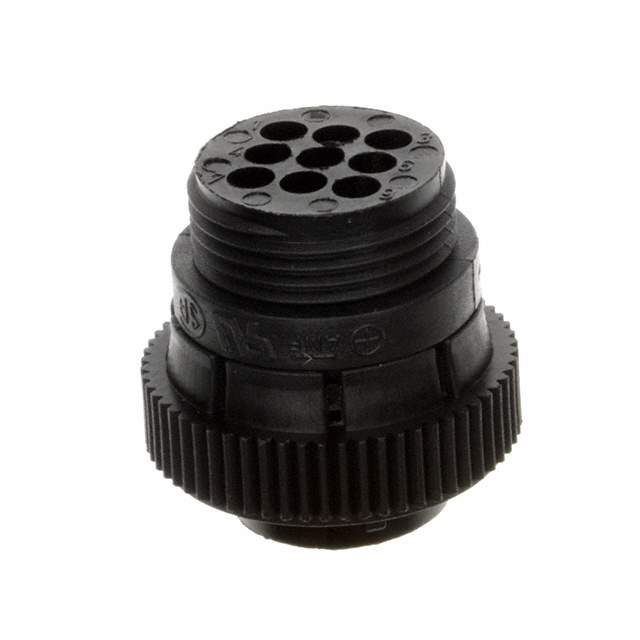

The TE Connectivity AMP Connectors 1334531-182645-1 is a circular connector housing that is designed for female sockets.

  • Positions: Nine
  • Coupling Nut: Yes
  • Connector Type: Plug Housing
  • Contact Type: Crimp
  • Fastening Type: Threaded
  • Contact Size: 16
  • Shielded: Unshielded
  • Housing Color: Black
  • Orientation: Keyed
  • Temperature Range: -55°C to 105°C
  • ECCN: EAR99
