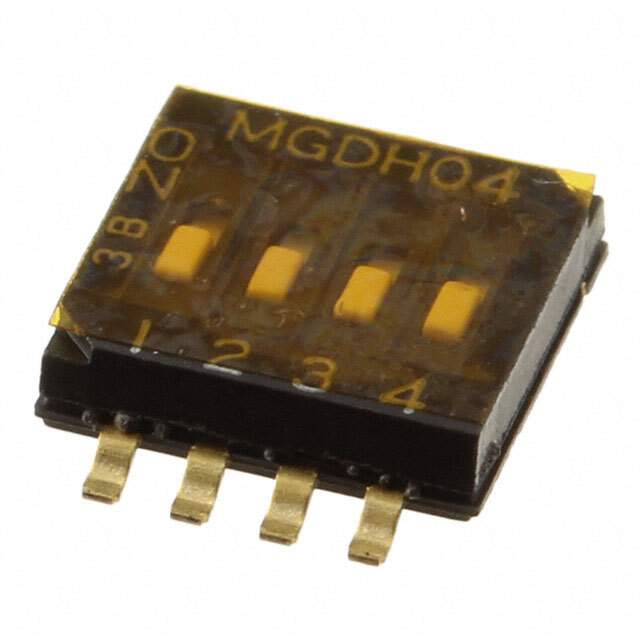

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series MGDH
Package Tape & Reel
Circuit SPST
Number of Positions 4
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.067" (1.70mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable No
Features Tape Seal
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.244" (6.20mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number 1825140
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Other Names MGDH04STR04-ND,-1825140-2-SI,450-2059-1,450-2059-2,-MGDH04STR04-SI-ND,-MGDH04STR04-LSI,1825140-2-ND,MGDH04STR04,-MGDH04STR04-SI,2266-1825140-2TR,450-2059-6
Standard Package 2,000
Win Source Part Number 1134278-1825140-2
Ultra Librarian 3D Model Ultra Librarian 1825140-2 CAD Model

Description

TE Connectivity ALCOSWITCH Switches 1017846 is a 4-position SPST slide DIP switch that comes in a tape and reel package.

  • Number of Positions: 4
  • Switch Type: SPST Slide DIP
  • Package: Tape and reel
  • Pitch: 0.050 inches
  • Termination Style: Gull wing
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Washable: Yes
  • Operating Temperature Range: -30°C to 85°C
  • Supply and Demand Status: Unknown
