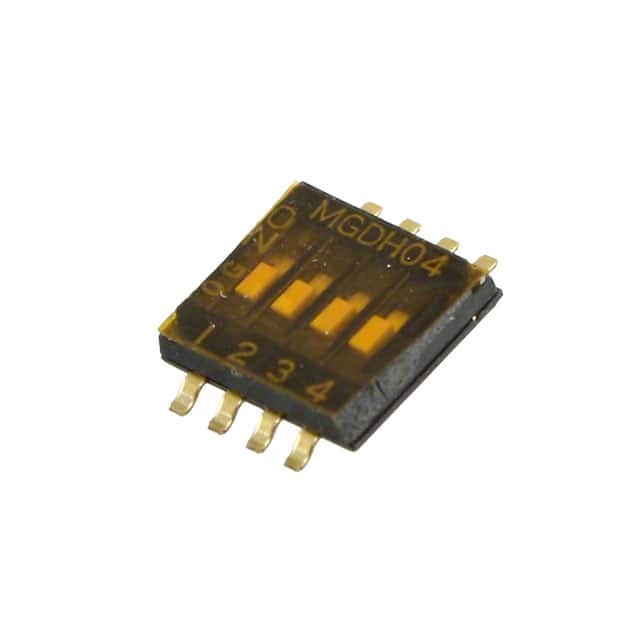

Part No 1825140-1
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr TE Connectivity
Series MGDH
Package Tube
Product Status Active
Circuit SPST
Number of Positions 4
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.067" (1.70mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable No
Features Tape Seal
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.244" (6.20mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number 1825140
Standard Package 70 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 884585-1825140-1
Ultra Librarian 3D Model Ultra Librarian 1825140-1 CAD Model

Description

The MGDH DIP Switches are versatile electronic components designed for easy and efficient circuit configuration.

  • Series: MGDH
  • Manufacturer: TE Connectivity
  • Number of Positions: 4
  • Pitch: 0.050"
  • Termination Style: gull wing
  • Contact Finish: gold
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Standard Package: 70 pcs
  • Mounting: surface mount
  • Temperature Range: -30°C to 85°C
  • Application: compact and reliable circuit configuration
