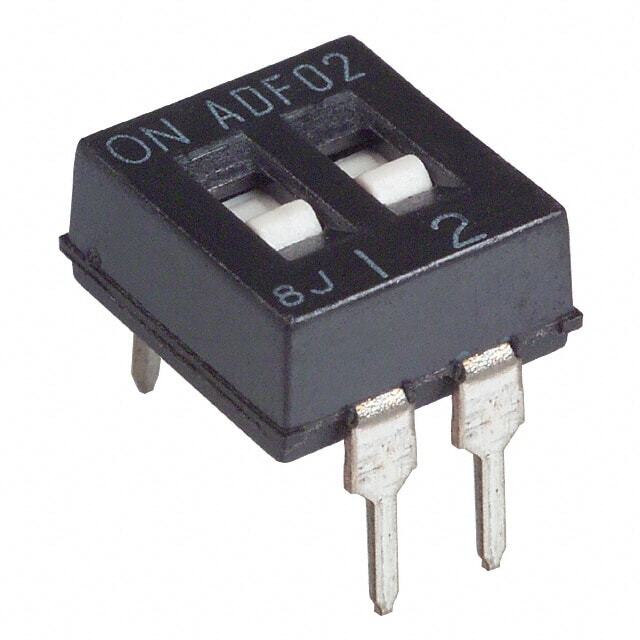

1825002-1
Same model may have multiple batches, images only for reference.

1825002-1

Part No 1825002-1
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr TE Connectivity
Series ADF
Package Tube
Product Status Active
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.189" (4.80mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.278" (7.06mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number 1825002
Standard Package 60 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 854205-1825002-1
Ultra Librarian 3D Model Ultra Librarian 1825002-1 CAD Model

Description

The 854205-1825002-1 is a 2-position DIP switch from TE Connectivity's ADF series.

  • Positions: 2
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Full, PC Pins
  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Operating Temperature: -30°C to 85°C
  • Actuator Level: Flush, Recessed
  • Washable: Yes
  • Mechanical Life: 1,000 Cycles
  • Electrical Life: 1,000 Cycles
  • Body Material: Polyphenylene Sulfide (PPS)
