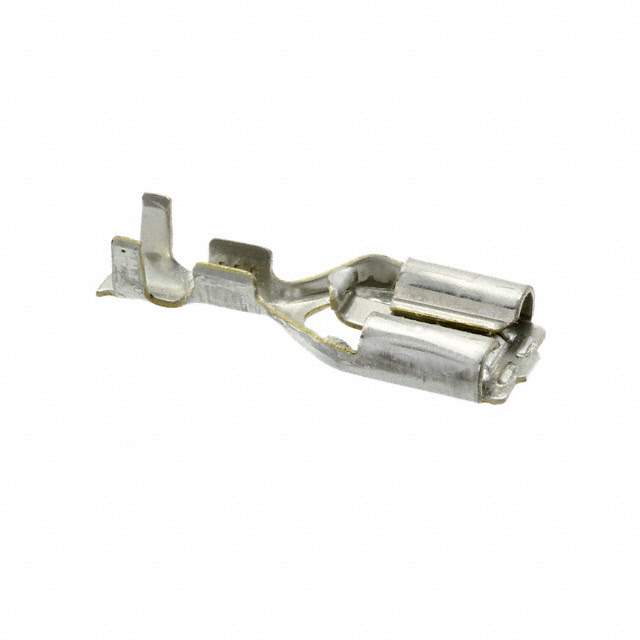

179973-1

Part No 179973-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 18-22AWG 0.250  /  0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Positive Lock EX-II
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.248" (6.30mm)
Length - Overall 0.835" (21.21mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.059" ~ 0.122" (1.50mm ~ 3.10mm)
Base Product Number 179973
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 2266-179973-1TR,A107937DKR-ND,1799731,-179973-1-SI,A107937CT,-179973-1-CSI,A107937TR,A107937DKR,A107937DKRINACTIVE
Standard Package 5,000
Win Source Part Number 971435-179973-1
Ultra Librarian 3D Model Ultra Librarian 179973-1 CAD Model

Description

The Positive Lock EX-II is a female quick disconnect connector that comes in a package of tape & reel (TR), cut tape (CT) and has a standard package of 5,000.

  • Packaging: Tape & Reel (TR), Cut Tape (CT)
  • Standard Package: 5,000
  • Termination Type: Crimp
  • Contact Finish: Tin
  • Material: Brass
  • Wire Gauge: 18-22 AWG
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.248" (6.30mm)
  • Insulation Diameter: 0.059" ~ 0.122" (1.50mm ~ 3.10mm)
  • Insulation: Non-Insulated
