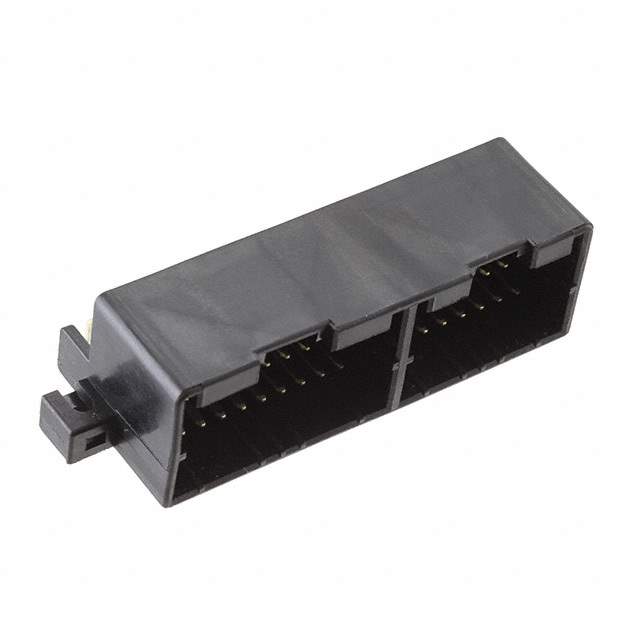

174146-2 Real Image
Same model may have multiple batches, images only for reference.

174146-2

Part No 174146-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 36POS 2.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 15 Weeks
Features Connector Header Through Hole, Right Angle 36 position 0.098" (2.50mm)
Manufacturer TE Connectivity
Series Multi-Lock
Package Tube
Operating Temperature Range -30°C ~ 105°C
Mounting Through Hole, Right Angle
Family Name 174146
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 174146-2-ND, -174146-2-LSI, A126049, -174146-2-CSI, -174146-2-SI
Quantity per package 35
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905528-174146-2
Ultra Librarian 3D Model Ultra Librarian 174146-2 CAD Model

Description

The 905528-174146-2 is a 36-position header connector designed by TE Connectivity. Bold the product name (e.g., BAV99S,135 → 905528-174146-2) and manufacturer (e.g., Nexperia USA Inc. → TE Connectivity).

  • Series: Multi-Lock
  • Package Type: Tube
  • ECCN: EAR
  • MSL Level: 1
  • HTSUS: 8536.69.4040
