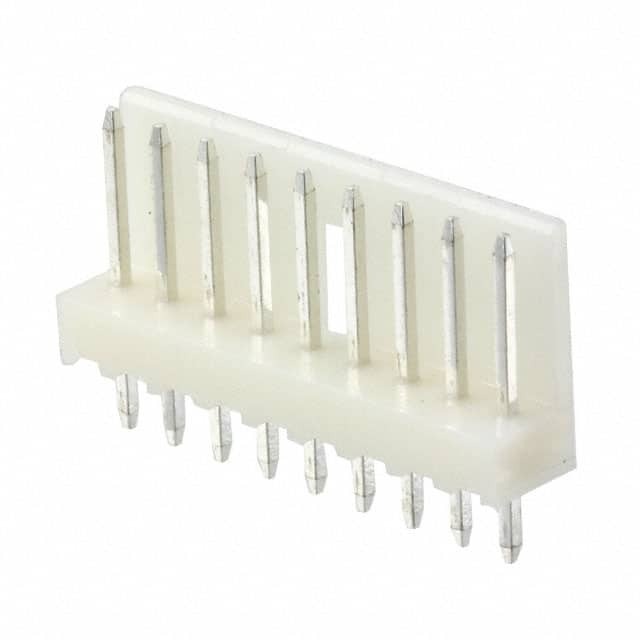

171825-9
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series EI
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length 0.551" (14.00mm)
Insulation Height 0.409" (10.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 31.5µin (0.80µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 250VAC, 350VDC
Contact Finish Thickness - Post 31.5µin (0.80µm)
Applications General Purpose
Base Product Number 171825
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 905479-171825-9
Ultra Librarian 3D Model Ultra Librarian 171825-9 CAD Model

Description

The TE Connectivity 905479-171825-9 is a header male pin connector in the rectangular connectors category. It is part of the EI series and has 9 positions.

  • Series: EI
  • Connector Type: Header Male Pin
  • Category: Rectangular Connectors
  • Number of Positions: 9
  • Number of Rows: 1
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Package: Bulk
  • Contact Material: Brass
  • Voltage Rating: 250VAC, 350VDC
  • Purpose: General Purpose
  • Standard Package: 500 pieces
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Connector Style: Board to Cable/Wire
  • Mating Pitch: 0.098" (2.50mm)
  • Contact Finish (Mating): Tin (31.5µin (0.80µm))
  • Contact Finish (Post): Tin (31.5µin (0.80µm))
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Base Product Number: 171825
