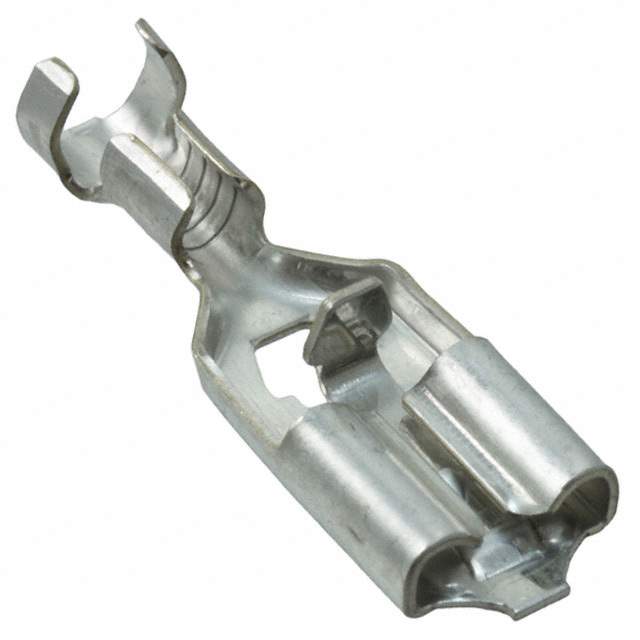

170328-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.307" (7.80mm)
Length - Overall 1.016" (25.80mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.087" ~ 0.134" (2.21mm ~ 3.40mm)
Base Product Number 170328
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -170328-1-CSI,-170328-1-SI,170328-1-ND,A107096CT,1703281,A107096TR,2266-170328-1TR
Standard Package 3,500
Win Source Part Number 1333886-170328-1
Ultra Librarian 3D Model Ultra Librarian 170328-1 CAD Model

Description

TE Connectivity AMP Connectors 1333886-170328-1 is a female quick disconnect connector that is used in connectors and interconnects.

  • Packaging: Reel
  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 14-18 AWG
  • Contact Material: Brass
  • Insulation: Non-insulated
  • Tab Width: 0.250 inches
  • Tab Thickness: 0.032 inches
  • Tab Length: 0.307 inches
  • Insulation Diameter: 0.087-0.134 inches
  • RoHS3 Compliant: Yes
