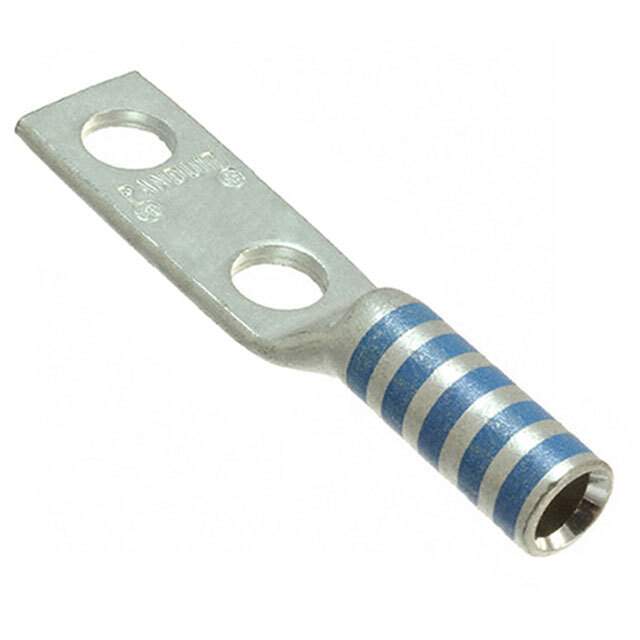

The LCCX350-12-6 is a copper compression lug manufactured by Panduit Corp. It is designed for terminating stranded copper conductors and providing a secure and reliable electrical connection. This lug is part of the LCCX series, known for their high-quality construction and performance in demanding applications.

Applications

• Power distribution systems
• Grounding connections
• Electrical equipment terminations
• Control panel wiring
• Industrial machinery connections

Features

• Conductor Size: 350 kcmil
• Stud Size: 1/2 inch
• Material: Electrolytic Copper
• Plating: Tin-plated
• Barrel Type: Standard Barrel
• Inspection Window: Yes
• UL Listed: Yes
• CSA Certified: Yes

Benefits

• Provides a secure and reliable electrical connection, minimizing the risk of loose connections and overheating.
• Tin plating protects against corrosion, ensuring long-lasting performance in harsh environments.
• The inspection window allows for visual verification of proper conductor insertion.
• UL Listed and CSA Certified, ensuring compliance with industry standards for safety and performance.
• Easy to install using a compression tool.
• Provides excellent conductivity, minimizing voltage drop and power loss.

Additional Details

The LCCX350-12-6 is designed for use with stranded copper conductors sized at 350 kcmil. The 1/2 inch stud size allows for easy connection to equipment and bus bars. The standard barrel design provides ample space for conductor insertion. The tin plating enhances corrosion resistance, making it suitable for use in both indoor and outdoor applications. It is commonly used in electrical panels, switchgear, and other power distribution equipment. Proper compression is essential to ensure a reliable and safe electrical connection. Use of the correct compression tool and die is required for proper installation.
