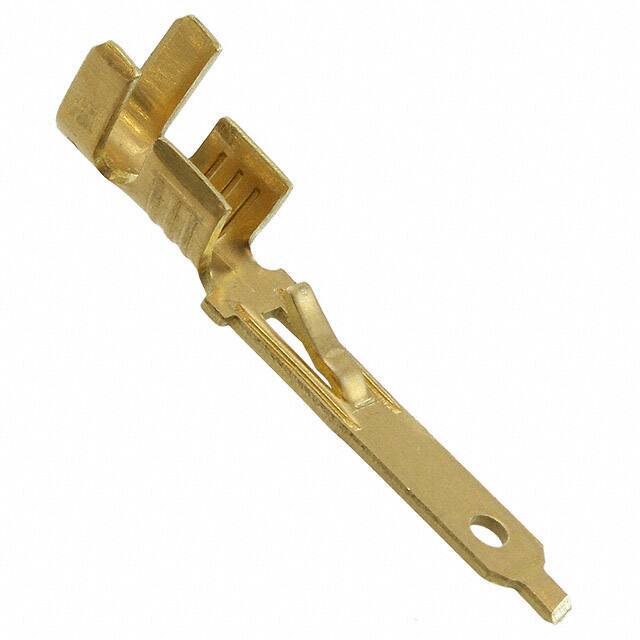

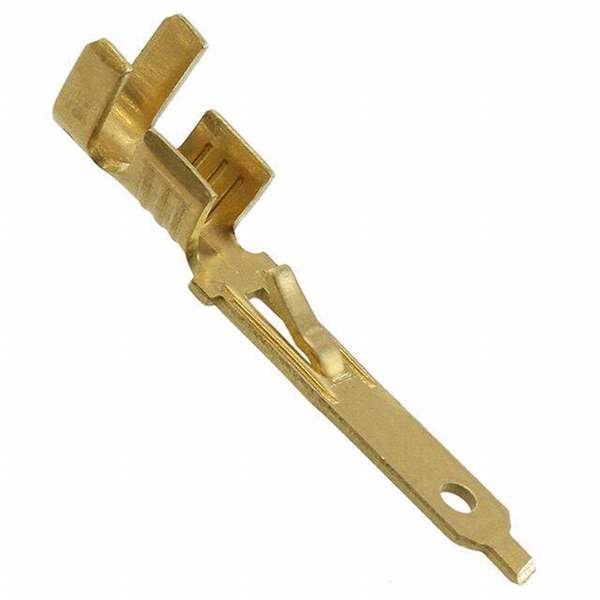

170014-5 TE Connectivity
Same model may have multiple batches, images only for reference.

170014-5

Part No 170014-5
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC TAB 16-20AWG 0.110 CRIMP / 0.110" (2.79mm) Quick Connect Male 16-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Male
Tab Width 0.110" (2.79mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.472" (12.00mm)
Length - Overall 0.807" (20.50mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish -
Insulation Diameter 0.079" ~ 0.118" (2.00mm ~ 3.00mm)
Base Product Number 170014
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365032-170014-5
Ultra Librarian 3D Model Ultra Librarian 170014-5 CAD Model

Description

The TE Connectivity AMP Connectors Fastin-Faston Quick Disconnect Connector is a reliable and efficient solution for quick and easy wire connections.

  • Mounting Type: Free Hanging (In-Line)
  • Wire Gauge: 16-20 AWG
  • Insulation: Non-Insulated
  • Length: 0.807" (20.50mm)
  • Tab Width: 0.110" (2.79mm)
  • Contact Material: Brass
  • Termination: Crimp
