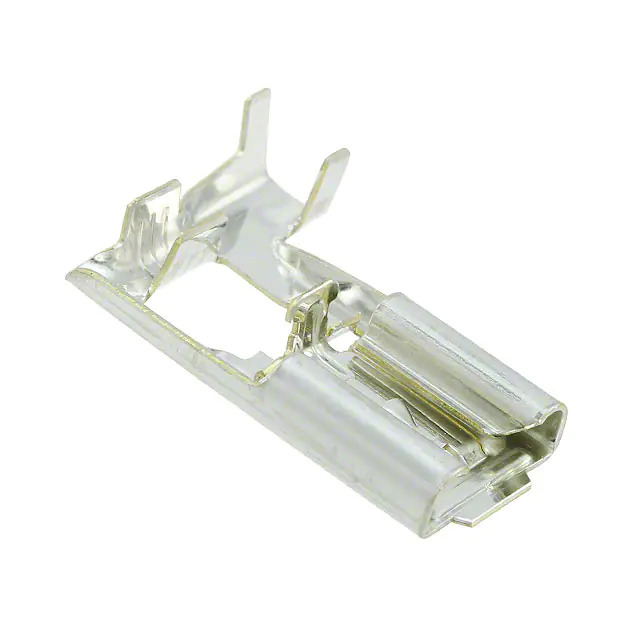

172795-1 TE Connectivity
Same model may have multiple batches, images only for reference.

172795-1

Part No 172795-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-20AWG 0.312 / 0.312" (7.92mm) Quick Connect Female 14-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Mark II
Package Tape & Reel (TR)
Product Status Active
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.312" (7.92mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.335" (8.50mm)
Length - Overall -
Termination Crimp
Wire Gauge 14-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.087" ~ 0.134" (2.21mm ~ 3.40mm)
Base Product Number 172795
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364876-172795-1
Ultra Librarian 3D Model Ultra Librarian 172795-1 CAD Model

Description

The TE Connectivity AMP Connectors Mark II Quick Disconnect Connector is a reliable and versatile component for various electronic applications.

  • Mounting Type: Free Hanging (In-Line) and Right Angle
  • Wire Gauge Range: 14-20 AWG
  • Contact Finish: Tin
  • Contact Material: Brass
  • Gender: Female
  • Terminal Type: Angled-90°, Flag
  • Tab Width: 0.312" (7.92mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulation Diameter: 0.087" to 0.134" (2.21mm to 3.40mm)
