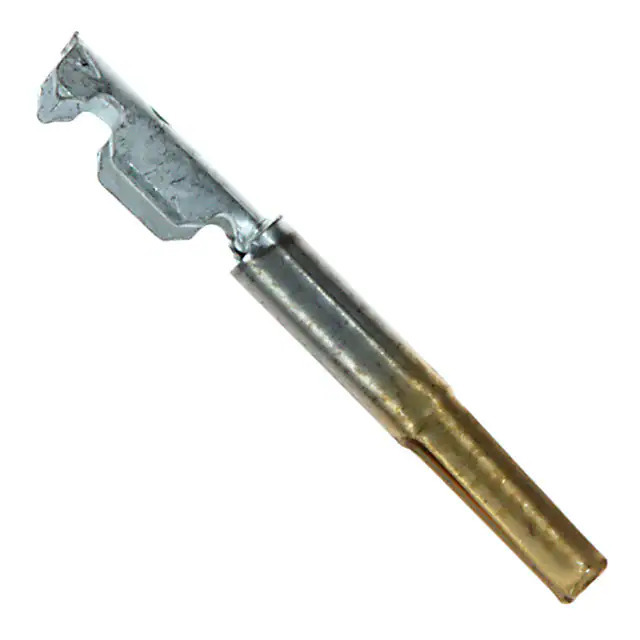

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-22
Package Bulk
Product Status Active
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22-28 AWG
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number 1658686
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363051-1658686-4
Ultra Librarian 3D Model Ultra Librarian 1658686-4 CAD Model

Description

The TE Connectivity AMP Connectors 1658686-4 is a multi-purpose socket contact designed for connectors and interconnects.

  • Series: AMPLIMITE HDP-22
  • Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Contact Termination: Crimp
  • Wire Gauge: 22-28 AWG
  • Design: Stamped
  • Status: Active
  • MSL Level: Unlimited
  • ECCN: EAR99
  • Packaging: Bulk
  • HTSUS Code: 8536.90.4000
  • REACH Status: Vendor undefined
