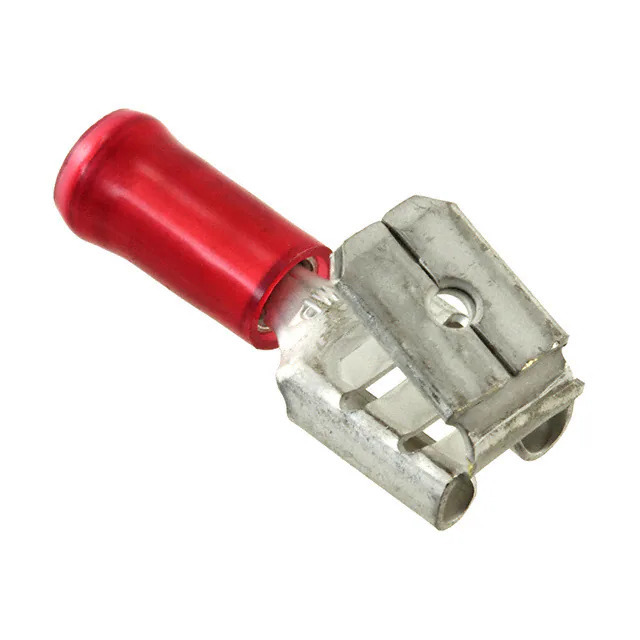

Same model may have multiple batches, images only for reference.

160834-2

Name: 160834-2
Brand: TE Connectivity
SKU: 1364778
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	160834-2
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN QC RCPT/TAB 16-22AWG 0.250 / 0.250" (6.35mm) Quick Connect Female and Male 16-22 AWG Crimp Connector Non-Mating End Insulated
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr	TE Connectivity AMP Connectors
Series	Faston, PIDG
Package	Bulk
Product Status	Active
Terminal Type	Stacked
Gender	Female and Male
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	0.305" (7.75mm)
Length - Overall	0.927" (23.55mm)
Termination	Crimp
Wire Gauge	16-22 AWG
Insulation	Non-Mating End Insulated
Mounting Type	Free Hanging (In-Line)
Features	-
Color	Red
Contact Material	Brass
Contact Finish	Tin
Insulation Diameter	0.140" (3.56mm)
Base Product Number	160834
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1364778-160834-2
Ultra Librarian 3D Model	Ultra Librarian 160834-2 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 160834 is a quick disconnect connector from the Faston and PIDG series.

Series: Faston and PIDG
Insulation: Insulated on the Non-Mating End
Wire Gauges: 16-22 AWG
Overall Length: 0.927" (23.55mm)
Contact Material: Brass
Terminal Type: Stacked
Gender: Female and Male
Tab Width: 0.250" (6.35mm)
Tab Thickness: 0.032" (0.81mm)
Product Status: Active
Category: Connectors
