Same model may have multiple batches, images only for reference.

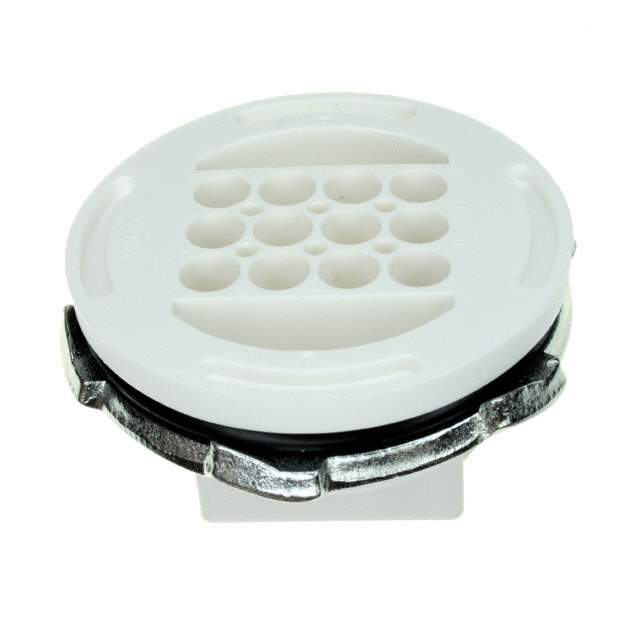

1604941-1 Real Image
Same model may have multiple batches, images only for reference.

1604941-1

Part No 1604941-1
Manufacturer TE Connectivity
Catalog Barrel - Power Connectors
Description CONN CAP HOUSING 12PS SEAL BLKHD  /  12 Rectangular Connectors - Housings Receptacle Natural
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Package Bulk
Product Status Obsolete
Connector Type Receptacle
Contact Type Male or Female
Number of Positions 12
Number of Rows 3
Row Spacing 0.250" (6.35mm)
Mounting Type Panel Mount, Bulkhead
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Note Contacts Not Included
Base Product Number 1604941
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.6000
Other Names -1604941-1-SI,A32538,16049411
Standard Package 180
Win Source Part Number 1223044-1604941-1
Ultra Librarian 3D Model Ultra Librarian 1604941-1 CAD Model

Description

The Universal MATE-N-LOK 1604941-1 is a rectangular connector housing with 12 positions and a natural color. It has a locking ramp fastening type and is designed for panel mount or bulkhead mounting. The device is part of the Connectors, Interconnects>Rectangular Connectors - Housings category. The device has a Win Source Part Number of 1223044-1604941-1 and is manufactured by TE Connectivity AMP Connectors. The device is obsolete and has a standard package of 180. The device is ECCN EAR99 and is REACH affected. The device has several alternative parts (cross-reference) including 1604941-1.
