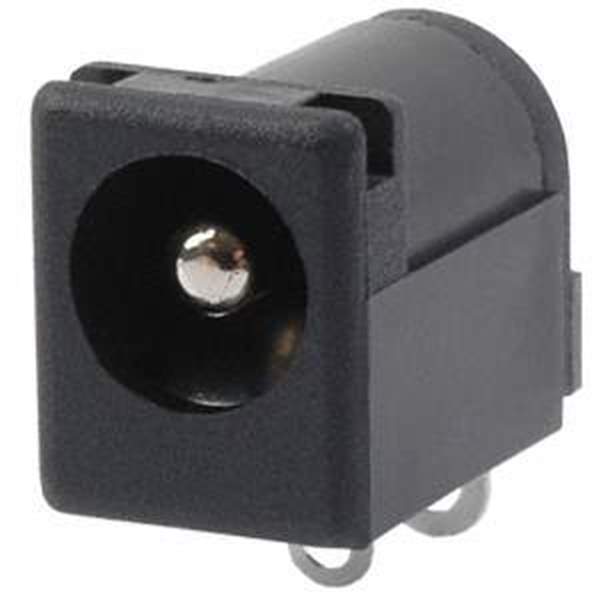

Same model may have multiple batches, images only for reference.

PJ-037BH

Name: PJ-037BH
Brand: CUI Inc.
SKU: 1350476
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PJ-037BH
Manufacturer	CUI Inc.
Catalog	Barrel - Power Connectors
Description	CONN PWR JACK 2.5X5.5MM SOLDER / Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
Datasheet	PJ-037BH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Barrel Connectors - Power Connectors
Mfr	CUI Devices
Package	Bag
Connector Type	Jack
Gender	Male
Industry Recognized Mating Diameter	2.50mm ID (0.098") , 5.50mm OD (0.217")
Actual Diameter	0.098" (2.50mm ID) , 0.256" (6.50mm OD)
Number of Positions/Contacts	2 Conductors, 2 Contacts
Internal Switch(s)	Does Not Contain Switch
Mounting Type	Through Hole, Right Angle
Termination	Solder Eyelet(s)
Shielding	Unshielded
Voltage - Rated	24VDC
Current Rating (Amps)	5 A
Mating Length/Depth	0.386" (9.80mm)
Material Flammability Rating	UL94 V-0
Temperature Range - Operating	-25°C ~ 85°C
Contact Material - Plating	Silver
Housing Material	Polybutylene Terephthalate (PBT)
Contact Material	Brass, Copper Alloy
Body Color	Black
Base Product Number	PJ-037
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350476-PJ-037BH
Ultra Librarian 3D Model	Ultra Librarian PJ-037BH CAD Model

Alternative Products

Description

The PJ-037BH is a male power jack connector with 2 conductors and 2 contacts from CUI Devices.

Current Rating: 5A
Voltage Rating: 24VDC
Contact Material: Brass and Copper Alloy with Silver Plating
Housing Material: Polybutylene Terephthalate (PBT)
Flammability Rating: UL94 V-0
Package: Bag
Standard Package: 500
Mounting Type: Through-Hole and Right-Angle
Operating Temperature: -25°C to 85°C
