Same model may have multiple batches, images only for reference.

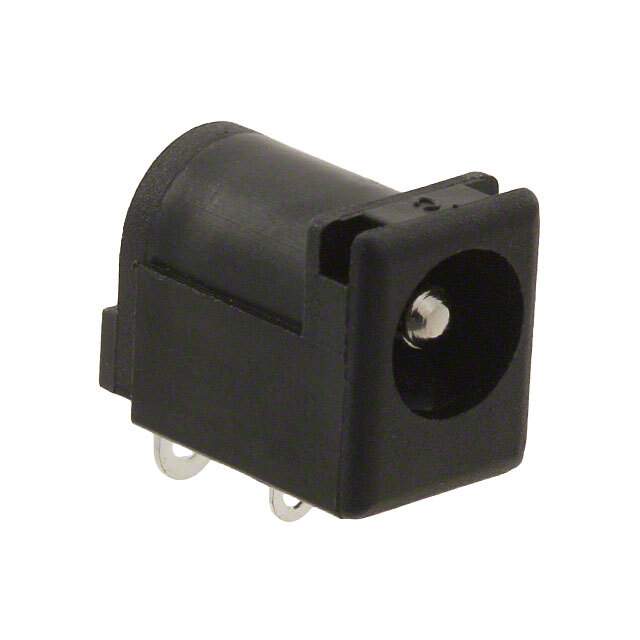

PJ-037B Real Image
Same model may have multiple batches, images only for reference.

PJ-037B

Part No PJ-037B
Manufacturer CUI Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 2.5X5.5MM SOLDER / Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
Datasheet
PJ-037B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Power Connectors
Mfr CUI Devices
Package Bag
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.50mm ID (0.098") , 5.50mm OD (0.217")
Actual Diameter 0.098" (2.50mm ID) , 0.256" (6.50mm OD)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Through Hole, Right Angle
Termination Solder Eyelet(s)
Shielding Unshielded
Voltage - Rated 24VDC
Current Rating (Amps) 2.5 A
Mating Length/Depth 0.386" (9.80mm)
Material Flammability Rating UL94 V-0
Temperature Range - Operating -25°C ~ 85°C
Contact Material - Plating Tin
Housing Material Polybutylene Terephthalate (PBT)
Contact Material Brass, Copper Alloy
Body Color Black
Base Product Number PJ-037
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350475-PJ-037B
Ultra Librarian 3D Model Ultra Librarian PJ-037B CAD Model

Description

The 1350475-PJ-037B Jack Connector by CUI Devices is a male power connector board mount component that has a standard package of 500.

  • Standard Package: 500
  • Mounting: Through-Hole and Right-Angle
  • Current Rating: 2.5A
  • Voltage Rating: 24VDC
  • Conductors: 2
  • Contacts: 2
  • Connector Type: Jack
  • Termination: Solder Eyelet(s)
  • Contact Material: Brass, Copper Alloy
  • Gender: Male
  • Mating Diameter ID: 2.50mm (0.098")
  • Mating Diameter OD: 5.50mm (0.217")
  • RoHS Compliant: Yes
  • Other Part Number: PJ-037
  • ECCN: EAR99
