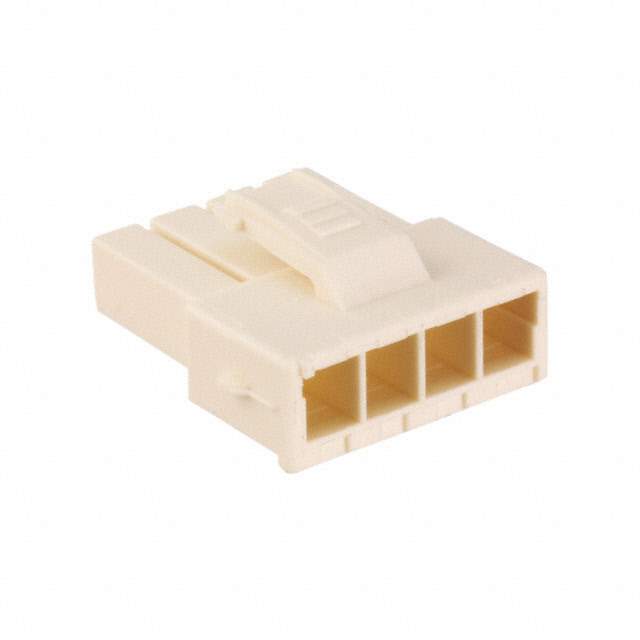

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Power Double Lock
Package Bulk
Connector Type Plug
Contact Type Female Socket
Number of Positions 4
Pitch 0.156" (3.96mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Base Product Number 2005251
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Names A116577,-2005251-1-SI
Standard Package 250
Win Source Part Number 1106448-2005251-1
Ultra Librarian 3D Model Ultra Librarian 2005251-1 CAD Model

Description

The 1106448-2005251-1 is a rectangular connector housing from TE Connectivity AMP Connectors.

  • Standard Package: 250
  • Package: Bulk
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.8000
  • Series: Power double lock
  • Positions: 4
  • Pitch: 0.156" (3.96mm)
  • Color: Natural
  • Type: Plug
  • Contact Type: Female socket
  • Fastening Type: Latch lock
  • Contact Termination: Crimp
  • Contacts: Not included
  • Mounting: Free hanging (in-line)
