Same model may have multiple batches, images only for reference.

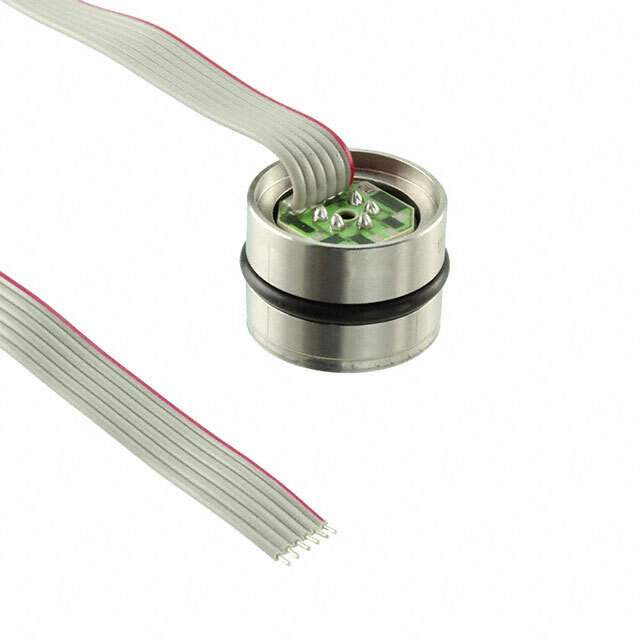

154N-300G-R Real Image
Same model may have multiple batches, images only for reference.

154N-300G-R

Part No 154N-300G-R
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR PRESSURE / Pressure Sensor 300PSI (2068.43kPa) Vented Gauge 0 mV ~ 100 mV Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer TE Connectivity Measurement Specialties
Packaging Tube
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 300PSI (2068.43kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV
Accuracy ±0.1%
Port Style No Port
Features Temperature Compensated
Termination Style Connector
Maximum Pressure 900PSI (6205.28kPa)
Temperature Range - Operating -40°C ~ 125°C
Case / Package Module
Base Product Number 154
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 2266-154N-300G-R,223-1394-5
Standard Package 1
Win Source Part Number 1336479-154N-300G-R
Ultra Librarian 3D Model Ultra Librarian 154N-300G-R CAD Model

Description

TE Connectivity Measurement Specialties presents the 1336479-154N-300G-R pressure sensor.

  • Temperature Compensated: Yes.
  • Pressure Type: Vented gauge.
  • Output Type: Wheatstone Bridge.
  • Output: 0 mV to 100 mV.
  • Accuracy: ±0.1%.
  • Operating Pressure: 300PSI (2068.43kPa).
  • Maximum Pressure: 900PSI (6205.28kPa).
  • Operating Temperature: -40°C to 125°C.
  • Package: Module package.
  • Compliance: ROHS3 compliant.
