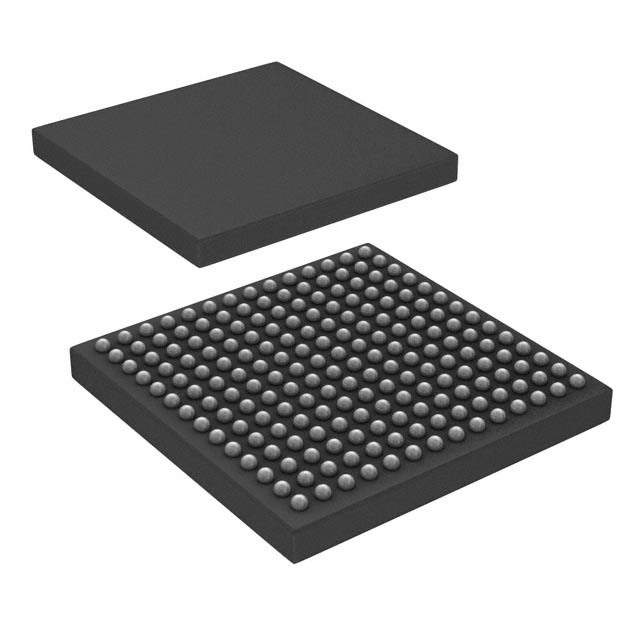

DAC34H84IZAYR Real Image
Same model may have multiple batches, images only for reference.

DAC34H84IZAYR

Part No DAC34H84IZAYR
Manufacturer Texas Instruments
Catalog Data Acquisition - Digital to Analog Converters (DAC)
Description DAC 4-CH Segment 16-bit 196-Pin NFBGA T/R / IC DAC 16BIT SRL 196NFBGA
Datasheet
DAC34H84IZAYR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of Bits 16
Number of D/A Converters 4
Settling Time 10ns (Typ)
Output Type Current - Unbuffered
Differential Output Yes
Data Interface LVDS - Parallel
Reference Type External, Internal
Analog Supply Voltage 3.14 V to 3.46 V
Digital Supply Voltage 1.14 V to 1.26 V
INL/DNL (LSB) ±4, ±2
Temperature Range - Operating -40°C to 85°C
Case / Package 196-NFBGA (12x12)
Win Source Part Number 013604-DAC34H84IZAYR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name DAC34H84
Introduction Date May 01, 2011
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian DAC34H84IZAYR CAD Model

Description

Description

The DAC34H84IZAYR is equipped to deliver optimal performance for RF applications. Known for its superior precision and reliability, it is an exemplary digital-to-analog converter.

Features and Benefits

  • Enhanced Digital Interface: For seamless connectivity and data integration.
  • Superior Dynamic Range: Ensures the quality and clarity of signal conversion.
  • Energy Efficient: Low power requirements lead to less energy consumption, making it environmentally friendly.

Applications

  • Communications Infrastructure
  • Broadcast Equipment
  • Telecommunications Devices
  • High-Performance Computing

Additional Details

Designed with a focus on extended service life and durability, the DAC34H84IZAYR meets the rigorous standards demanded by today's high-performance industries.
