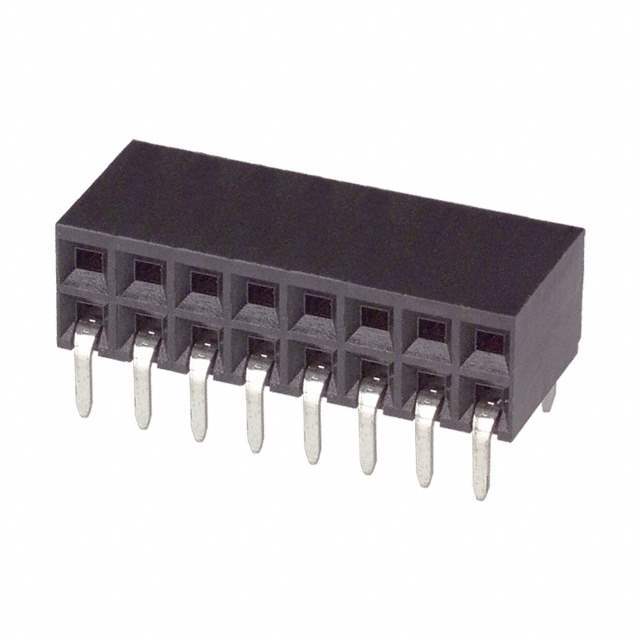

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1208126-15355128
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Rectangular Connectors -Headers, Receptacles, Female Sockets
Series AMPMODU Mod II
Package Tube
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Pitch - Mating 0.100" (2.54mm)
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole, Right Angle
Ultra Librarian 3D Model Ultra Librarian 15355128 CAD Model

Description

16 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
