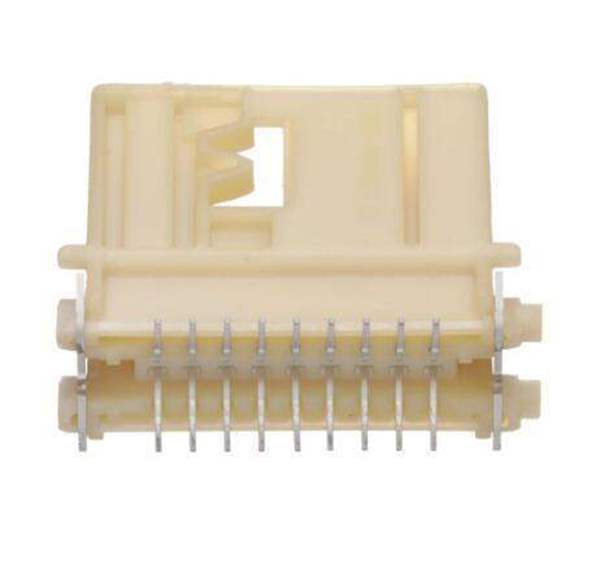

1438543-2 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1309883-1438543-2
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects > Rectangular Connectors > Headers, Male Pins
Packaging Bulk
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 18
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Shrouding Shrouded - 4 Wall
Ultra Librarian 3D Model Ultra Librarian 1438543-2 CAD Model

Description

This specification covers the requirements for application of SMT 0.64mm Generation Y LAC, Hand Mate, GET, and USCAR–approved header assemblies. The header assemblies are available in vertical, right–angle, and hybrid configurations. All configurations (except the hybrid) contain 0.64 [.025] surface mount pin contacts; the hybrid contains 0.64mm and 1.5mm surface mount pin contacts. These header assemblies are available with 6, 18, 20, 26, and 30 positions having in–row contact spacing on 2.54 [1.0] centerlines and row–to–row contact spacing on 1.27 [.050] centerlines.
