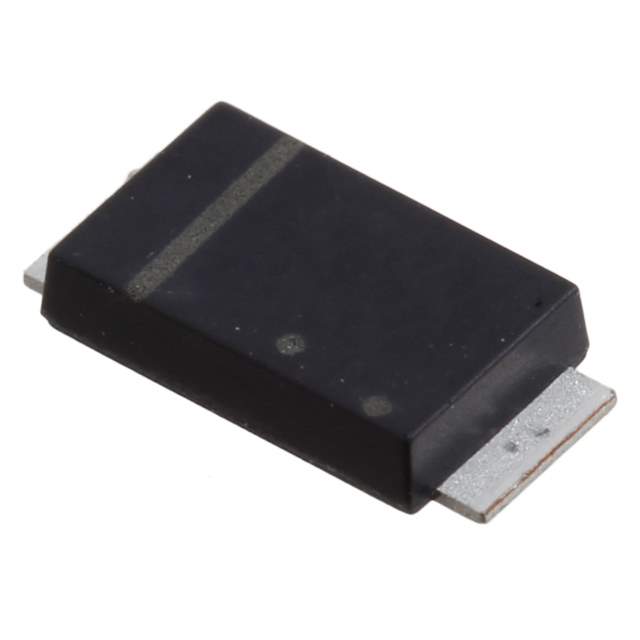

DB2430500L Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Panasonic Electronic Components
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 3A (DC)
Voltage - Forward (Vf) (Max) @ If 450 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 23 ns
Current - Reverse Leakage @ Vr 300 µA @ 30 V
Capacitance @ Vr, F 74pF @ 10V, 1MHz
Mounting SMD (SMT)
Package / Case SOD-128
Supplier Device Package TMiniP2-F2-B
Operating Temperature - Junction 150°C (Max)
Base Product Number DB24305
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names DB2430500LCT,DB2430500LDKR,DB2430500LTR
Standard Package 3,000
Win Source Part Number 1055216-DB2430500L
Ultra Librarian 3D Model Ultra Librarian DB2430500L CAD Model

Description

This electronic component is a Schottky diode that is categorized under the Discrete Semiconductor Products and Rectifiers - Single components.

  • Voltage DC Reverse: 30V
  • Average Rectified Current: 3A (DC)
  • Forward Voltage: 450mV @ 3A
  • Reverse Recovery Time: 23ns
  • Capacitance @ Vr, F: 74pF @ 10V and 1MHz
  • Maximum Junction Temperature: 150°C
  • Mounting Technology: SMD (SMT)
  • Packaging: Tape and Reel
  • Manufacturer: Panasonic Electronic Components
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8541.10.0080
  • Alternate Parts: ES3B, ES3D, ES3A, B350-13-F, and VS-3EJH02-M3/6A
