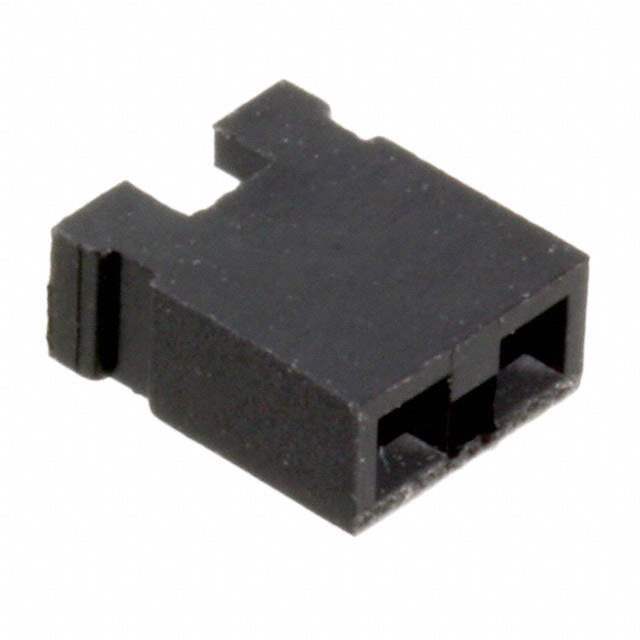

142270-3 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

142270-3

Part No 142270-3
Manufacturer TE Connectivity
Catalog Shunts, Jumpers
Description CONNECTOR SHUNT 2 P
Datasheet
142270-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308706-142270-3
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects>Shunts, Jumpers
Packaging Bulk
Part Status Active
Type Open Top
Gender Female Sockets
Number of Positions or Pins (Grid) 2 (1 x 2)
Pitch 0.100" (2.54mm)
Height 0.248" (6.30mm)
Contact Finish Tin
Color Black
Ultra Librarian 3D Model Ultra Librarian 142270-3 CAD Model

Description

Features
● Connector System: Board-to-Board
● Connector & Contact Terminates To: Printed Circuit Board
● Number of Positions: 2
● Handle: Without
● Primary Product Color: Black
● Contact Mating Area Plating Material Thickness: 3 µm[118.1 µin]
● Contact Mating Area Plating Material: Tin
● Contact Base Material: Beryllium Copper
● Shunt Type: AMPMODU MOD IV
● Shunt Style: Open Top
● Contact Current Rating (Max): 3 A
