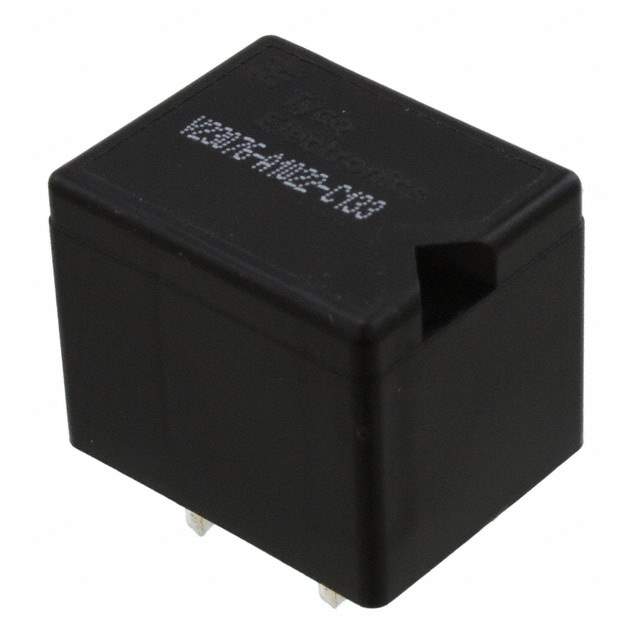

1393277-4 Real Image
Same model may have multiple batches, images only for reference.

1393277-4

Part No 1393277-4
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY AUTOMOTIVE SPDT 45A 12V /
Datasheet
1393277-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Automotive Relays
Mfr TE Connectivity AMP Connectors
Series V23076
Package Bulk
Coil Type Non Latching
Coil Current 133 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 45 A
Switching Voltage 12VDC - Nom
Must Operate Voltage 6.9 VDC
Must Release Voltage 1.2 VDC
Operate Time 5 ms
Release Time 3 ms
Features Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Coil Power 1.6W
Coil Resistance 90 Ohms
Base Product Number 1393277
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Standard Package 525
Win Source Part Number 1103599-1393277-4
Ultra Librarian 3D Model Ultra Librarian 1393277-4 CAD Model

Description

The TE Connectivity AMP Connectors 1103599-1393277-4 is a relay component with a through-hole mounting type and a temperature range of -40°C ~ 85°C.

  • Mounting Type: Through-Hole
  • Temperature Range: -40°C ~ 85°C
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 45A
  • Coil Resistance: 90 ohms
  • Coil Current: 133 mA
  • Standard Package: 525
  • Operate Time: 5 ms
