Products specifications Report Issue?

Category Cable Assemblies>Circular Cable Assemblies
Mfr Conec
Series 42
Package Bag
1st Connector Type Plug
1st Connector Gender Female Sockets
1st Connector Number of Positions 4
1st Connector Number of Positions Loaded All
1st Connector Shell Size - Insert M8
1st Connector Orientation A
1st Connector Mounting Type Panel Mount
2nd Connector Type Wire Leads
Length 0.66' (200.00mm)
Assembly Configuration Standard
Cable Type Individual
Cable Material Polyvinyl Chloride (PVC)
Color Multiple
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Usage Industrial Environments
Base Product Number 42-0100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Other Names 626-1528,4201001
Standard Package 1
Win Source Part Number 1162834-42-01001
Ultra Librarian 3D Model Ultra Librarian 42-01001 CAD Model

Description

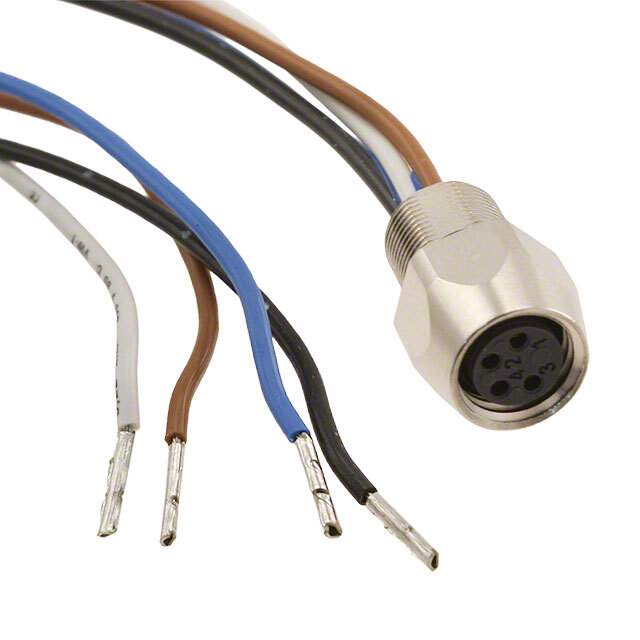

The 42-01001 is a circular cable assembly available at Win Source.

  • Manufacturer: Conec
  • Popularity: Medium
  • Environment: Industrial
  • Ingress Protection: IP67 (Dust-tight and waterproof)
  • Cable Length: 0.66' (200.00mm)
  • Cable Material: Polyvinyl Chloride (PVC)
  • Type: Panel-Mount Circular Cable Assembly
  • Connectors: Female Socket Plug and Wire Leads
