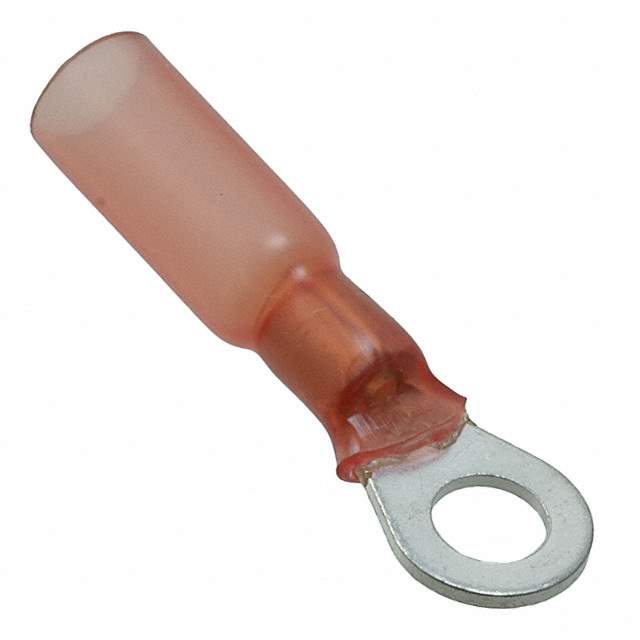

138601-000 Real Image
Same model may have multiple batches, images only for reference.

138601-000

Part No 138601-000
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 18-22AWG CRIMP  /  Ring Terminal Connector Circular 18-22 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr TE Connectivity Aerospace, Defense and Marine
Series Dura-Seal
Package Bulk
Terminal Type Circular
Width - Outer Edges 0.315" (8.00mm)
Length - Overall 1.260" (32.00mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Insulated with Heat Shrink
Color Red
Contact Material Copper Alloy
Contact Finish Tin
Material - Insulation Polyamide (PA), Nylon
Base Product Number 138601
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names B-106-1401-ND,B-106-1401,138601000
Standard Package 1,000
Win Source Part Number 1034748-138601-000
Ultra Librarian 3D Model Ultra Librarian 138601-000 CAD Model

Description

The TE Connectivity Dura-Seal is a high-quality ring connector that is designed to provide reliable performance.

  • Manufacturer: TE Connectivity Aerospace, Defense and Marine
  • Win Source Part Number: 1034748-138601-000
  • Insulation: Heat Shrink
  • Wire Gauge: 18-22 AWG
  • RoHS: Compliant
  • Popularity: 1000
