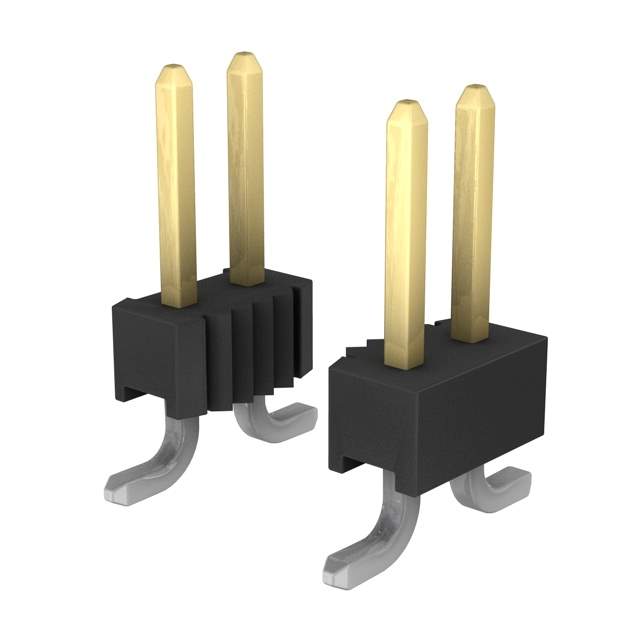

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod II
Package Tape & Reel
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.228" (5.80mm)
Insulation Height 0.110" (2.79mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating Flash
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Features Pick and Place
Insulation Color Black
Contact Finish Thickness - Post 118.1µin (3.00µm)
Base Product Number 1241050
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 12410503,A105244CT,A105244TR,2266-1241050-3TR,A105244DKR,-1241050-3-SI
Standard Package 350
Win Source Part Number 1108922-1241050-3
Ultra Librarian 3D Model Ultra Librarian 1241050-3 CAD Model

Description

TE Connectivity AMPMODU Mod II male header connector is available in a tape and reel package with 350 standard package quantity.

  • Positions Loaded: It has 6 positions loaded with all male pins.
  • Type: It is a breakaway header connector.
  • Pitch Mating: This connector has a pitch mating of 0.100 inches (2.54mm).
  • Style: It is available in board to board or cable style.
  • Contact Finish of Mating: The contact finish of mating is available in gold or gold-palladium with flash contact finish thickness.
  • Post Contact Finish: The post contact finish is tin with 118.1µin (3.00µm) contact finish thickness.
  • Mounting: This connector is mounted through SMD (SMT).
  • Application: It is used in various connectors.
