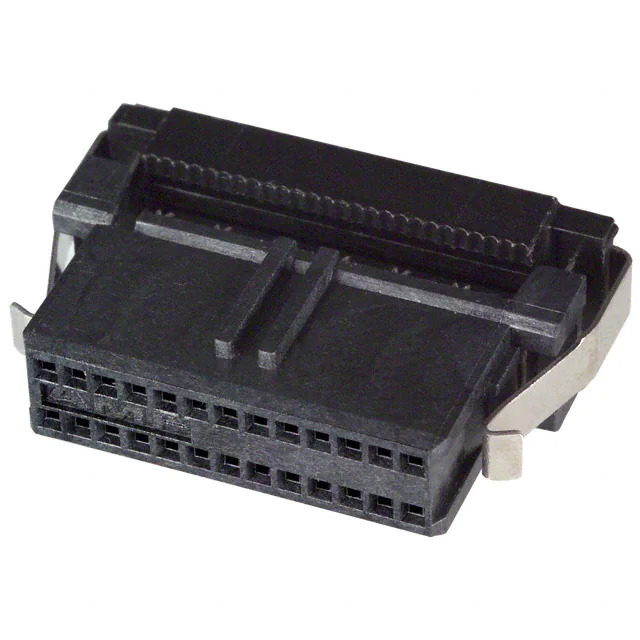

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr TE Connectivity AMP Connectors
Series AMPMODU System 50
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 26
Pitch 0.050" (1.27mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Fastening Type Latch Lock
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 30-32 AWG
Features Feed Through
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Base Product Number 111196
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1356795-111196-6
Ultra Librarian 3D Model Ultra Librarian 111196-6 CAD Model

Description

The AMPMODU System 50 Free Hanging, Panel Mount Rectangular Connectors are reliable and versatile components for your electronic assemblies.

  • Manufacturer: TE Connectivity AMP Connectors
  • Series: AMPMODU System 50
  • Type: Feed Through
  • Wire Gauge: 30-32 AWG
  • Contact Finish: Gold, 30.0μin (0.76μm)
  • Color: Black
  • Number of Positions: 26
  • Number of Rows: 2
  • Mounting Type: Free Hanging (In-Line)
  • Packaging: Bulk
