Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr C&K
Series 7000
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit 4PDT
Switch Function On-On
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 17.45mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 11.91mm Dia
Bushing Thread 15/32-32
Ingress Protection -
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Base Product Number 7401TZ
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375972-7401TZGE
Ultra Librarian 3D Model Ultra Librarian 7401TZGE CAD Model

Description

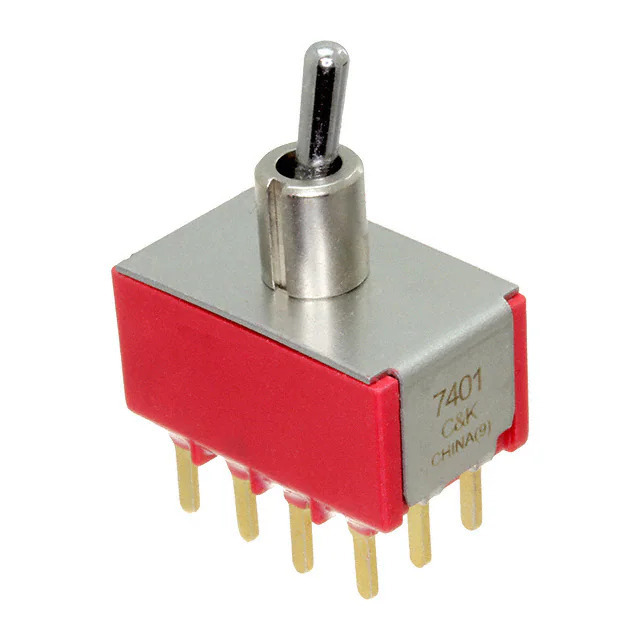

The C&K 7401TZGE is a toggle switch from the 7000 series.

  • Operating Temperature: -30°C to 85°C
  • Circuit: 4PDT
  • Switch Function: On-On
  • Current Rating: 5A (AC/DC)
  • Voltage Rating (AC): 120V
  • Voltage Rating (DC): 28V
  • Terminals: Epoxy Sealed
  • Mounting Type: Panel Mount
  • Panel Cutout Dimension: 11.91mm Diameter
  • Actuator Type: Standard Round
  • Actuator Length: 17.45mm
