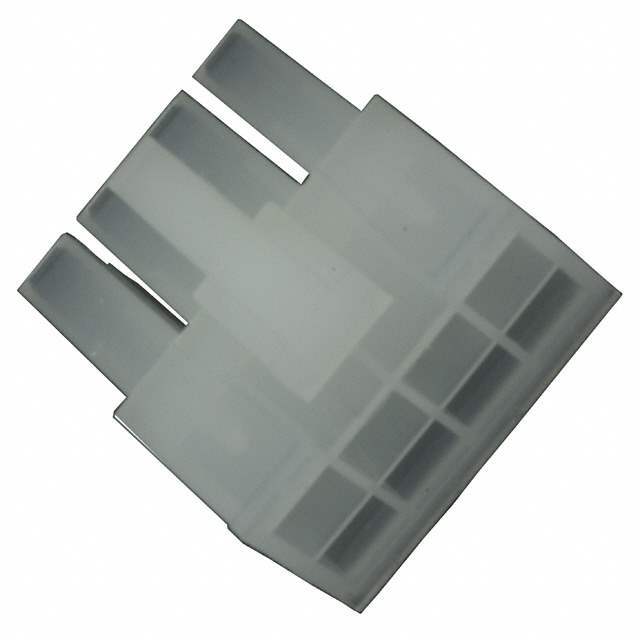

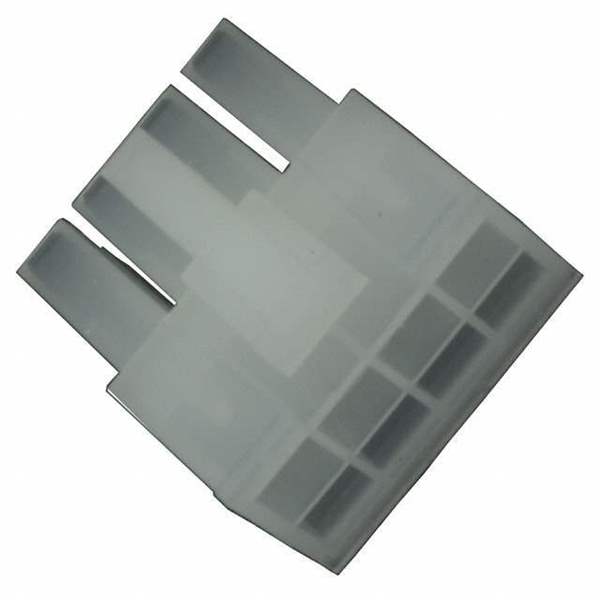

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Part Status Obsolete
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 8
Pitch 0.165" (4.20mm)
Number of Rows 2
Row Spacing 0.165" (4.20mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Natural
Ultra Librarian 3D Model Ultra Librarian 106527-8 CAD Model

Description

● Rectangular Power Connector Type: Housing

● Connector & Housing Type: Receptacle

● Connector System: Wire-to-Board, Wire-to-Wire

● Number of Positions: 8

● Centerline (Pitch): 4.2 mm [ .165 in ]
