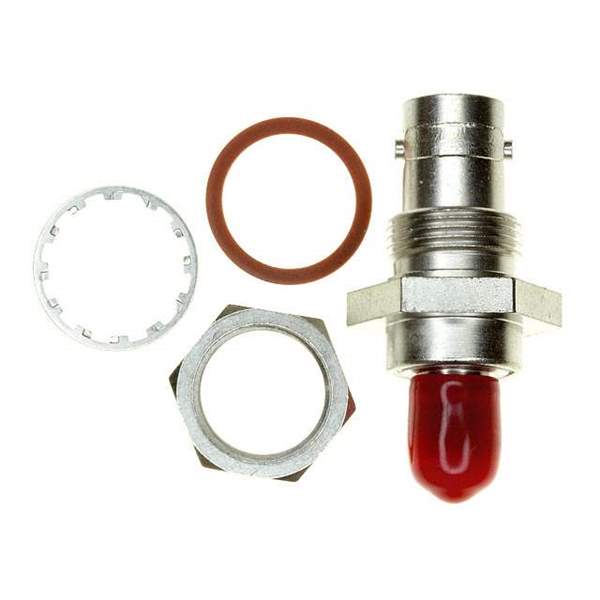

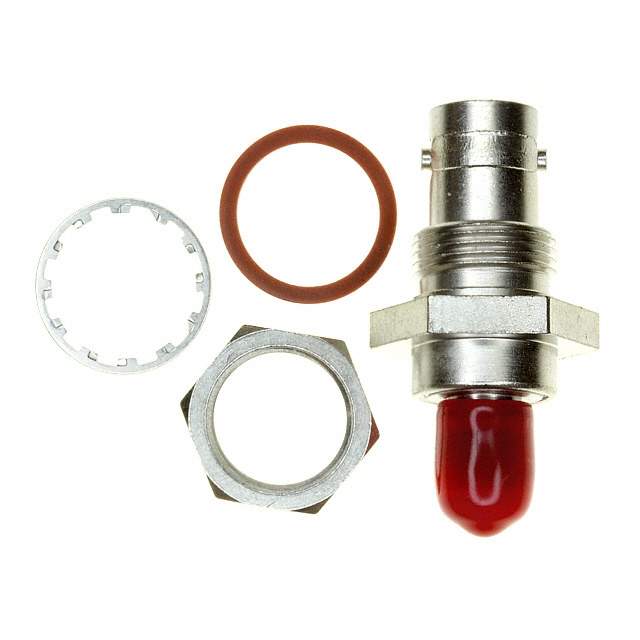

1058117-1 Real Image
Same model may have multiple batches, images only for reference.

1058117-1

Part No 1058117-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Adapters
Description CONN ADAPT BNC JACK TO SMA JACK
Datasheet
1058117-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Adapter Type Jack to Jack
Conversion Type Between Series
Adapter Series BNC to SMA
Center Gender Female to Female
Convert From (Adapter End) BNC Jack, Female Socket
Convert To (Adapter End) SMA Jack, Female Socket
Impedance 50 Ohm
Style Straight
Mounting Panel Mount
Mounting Feature Bulkhead
Fastening Type Bayonet Lock, Threaded
Maximum Input Frequency 4GHz
Center Contact Plating Gold
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Brass; Stainless Steel
Body Finish Nickel; Passivated
Center Contact Material Beryllium Copper
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C to 125°C
Win Source Part Number 1021806-1058117-1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1058117-1 CAD Model

Description

The TE Connectivity AMP Connectors 1021806-1058117-1 is a BNC to SMA jack to jack adapter designed for use in electronic circuits.

  • Body Material: brass and stainless steel
  • Body Finish: nickel and passivated
  • Impedance: 50 Ohm
  • Mounting Feature: bulkhead
  • Win Source Part Number: 1021806-1058117-1
  • Packaging: bulk
  • Style: straight
  • Maximum Input Frequency: 4GHz
  • Popularity: medium level of popularity
  • Supply and Demand: balance
