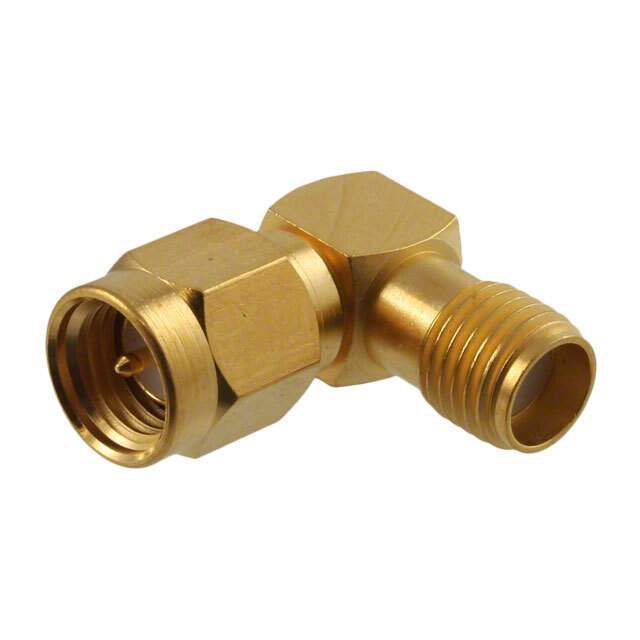

1055069-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

1055069-1

Part No 1055069-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Adapters
Description CONN ADAPT PLUG-JACK OSM 50 OHM
Datasheet
1055069-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects > Coaxial Connectors (RF) > Coaxial Connector (RF) Adapters
Packaging Bulk
Part Status Obsolete
Adapter Type Plug to Jack
Conversion Type Same Series
Adapter Series OSM to OSM
Center Gender Female to Male
Convert From (Adapter End) SMA Plug, Male Pin
Convert To (Adapter End) SMA Jack, Female Socket
Impedance 50 Ohms
Ultra Librarian 3D Model Ultra Librarian 1055069-1 CAD Model

Description

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
