Same model may have multiple batches, images only for reference.

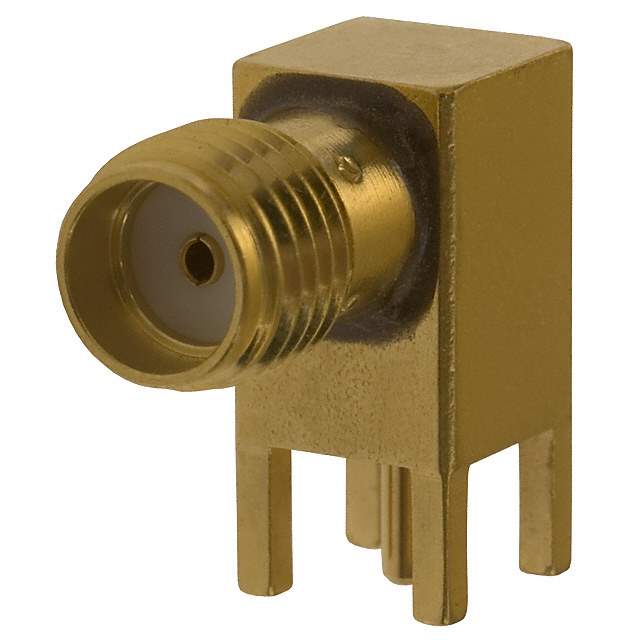

1053378-1 Real Image
Same model may have multiple batches, images only for reference.

1053378-1

Part No 1053378-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)
Description CONN SMA RCPT R/A 50 OHM PCB  /  SMA Connector Receptacle, Female Socket 50Ohm Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr TE Connectivity AMP Connectors
Package Bulk
Product Status Obsolete
Connector Style SMA
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Threaded
Frequency - Max 12.4 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Stainless Steel
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 125°C
Voltage Rating 335 V
Mating Cycles 500
Base Product Number 1053
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names 2064 0000 00,-1053378-1-SI,A30047,10533781,2266-1053378-1,-1053378-1-LSI
Standard Package 1
Win Source Part Number 1034288-1053378-1
Ultra Librarian 3D Model Ultra Librarian 1053378-1 CAD Model

Description

The 1053378-1 from TE Connectivity AMP Connectors is a coaxial connector (RF) product with a receptacle, female socket connector type.

  • Win Source Part Number: 1034288-1053378-1
  • Housing Color: Gold
  • Impedance: 50Ohm
  • Mounting Type: Through hole, right angle
  • Temperature Range: -65°C ~ 125°C
  • ECCN: EAR99
  • HTSUS: 8536.69.4010
