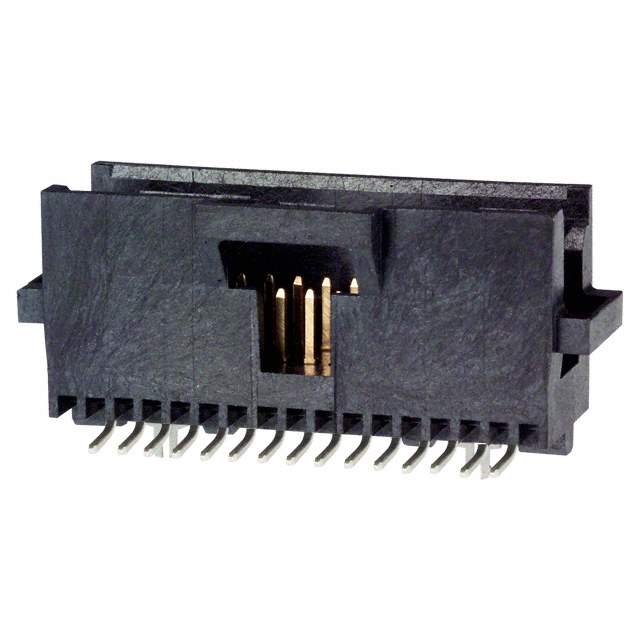

104549-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 30
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.125" (3.18mm)
Insulation Height 0.435" (11.05mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Insulation Material Polyphthalamide (PPA)
Features Board Lock
Temperature Range - Operating -65°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 30VAC
Contact Finish Thickness - Post 150μin (3.81μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Win Source Part Number 056912-104549-5
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian 104549-5 CAD Model

Description

Product Description

The 104549-5 is a dependable component for enhancing the performance and reliability of electronic assemblies, known for its superior quality and consistency.

Applications

  • Test and measurement equipment
  • Data processing units
  • Network infrastructure
  • Home automation systems

Features and Benefits

  • Consistent performance: Ensures predictability in usage patterns.
  • High reliability: Reduces risk of failure in complex systems.
  • Low maintenance: Decreases the time and cost associated with repairs.

Additional Details

Its high-quality construction makes the 104549-5 a preferred choice in professional-grade equipment and systems.
