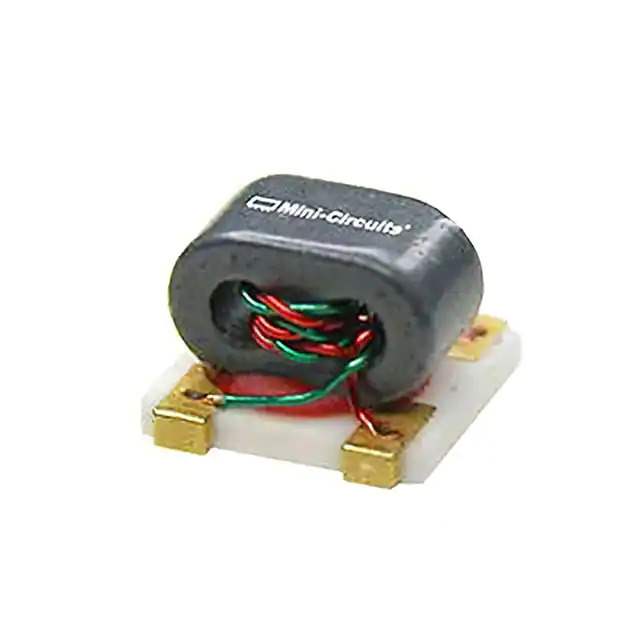

TC2-1TG2+ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 3MHz ~ 300MHz
Phase Difference 4°
Insertion Loss (Max) 1.0dB
Return Loss (Min) 15dB
Package / Case 5-SMD Module
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 720685-TC2-1TG2+
Ultra Librarian 3D Model Ultra Librarian TC2-1TG2+ CAD Model

Description

The 720685-TC2-1TG2+ is a balun module designed for RF and wireless applications. It operates in a frequency range of 3MHz to 300MHz, making it suitable for a wide range of applications.

  • Frequency Range: 3MHz to 300MHz
  • Phase Difference: 4°
  • Maximum Insertion Loss: 1.0dB
  • Minimum Return Loss: 15dB
  • Package: Surface Mount
  • Product Status: Active
  • Manufacturer: Mini-Circuits
  • Standard Package: 2,000 pcs
