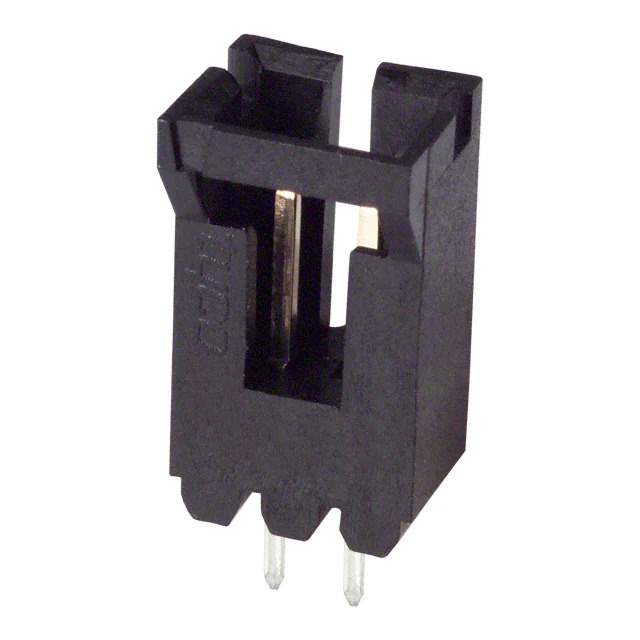

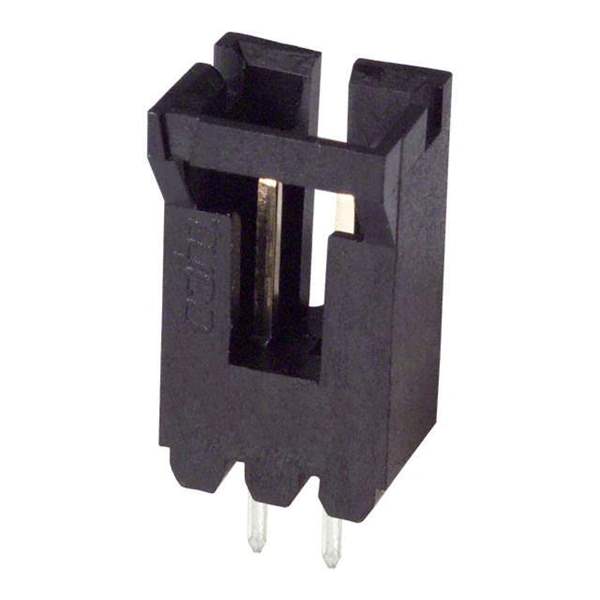

Same model may have multiple batches, images only for reference.

103638-1

Name: 103638-1
Brand: TE Connectivity
SKU: 905046
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	103638-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	AMPMODU MTE
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.535" (13.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Insulation Material	Thermoplastic
Features	Keying Slot
Insulation Color	Black
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Base Product Number	103638
Standard Package	71 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	905046-103638-1
Ultra Librarian 3D Model	Ultra Librarian 103638-1 CAD Model

Alternative Products

Description

The AMPMODU MTE series is a versatile header connector designed for various applications including automotive, general purpose, medical, and telecommunications.

Applications: Automotive, General Purpose, Medical, Telecommunications
Keying: Keying Slot
Contact Type: Male Pin
Positions Loaded: 2
Rows: 1
Termination: Solder
Fastening Type: Latch Holder
Contact Material: Brass
Mating Contact Finish: Gold (15.0µin)
Post Contact Finish: Tin-Lead (100.0µin)
Insulation Material: Thermoplastic
Features: Shrouded (4 Walls)
Contact Length: 0.230"
Insulation Height: 0.535"
